Colortrac M25e - Singlesensor Glass Sub-Assy

M Series Service Manual
Page 60 of 129
14.3 SingleSensor Glass Sub-Assy
14.3.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
14.3.2 Tools
 Small Flat Screwdriver
14.3.3 Associated Part Numbers
 10H128 : M40 SingleSensor Glass Sub-Assy
 10H083 : M25 SingleSensor Glass Sub-Assy
14.3.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.

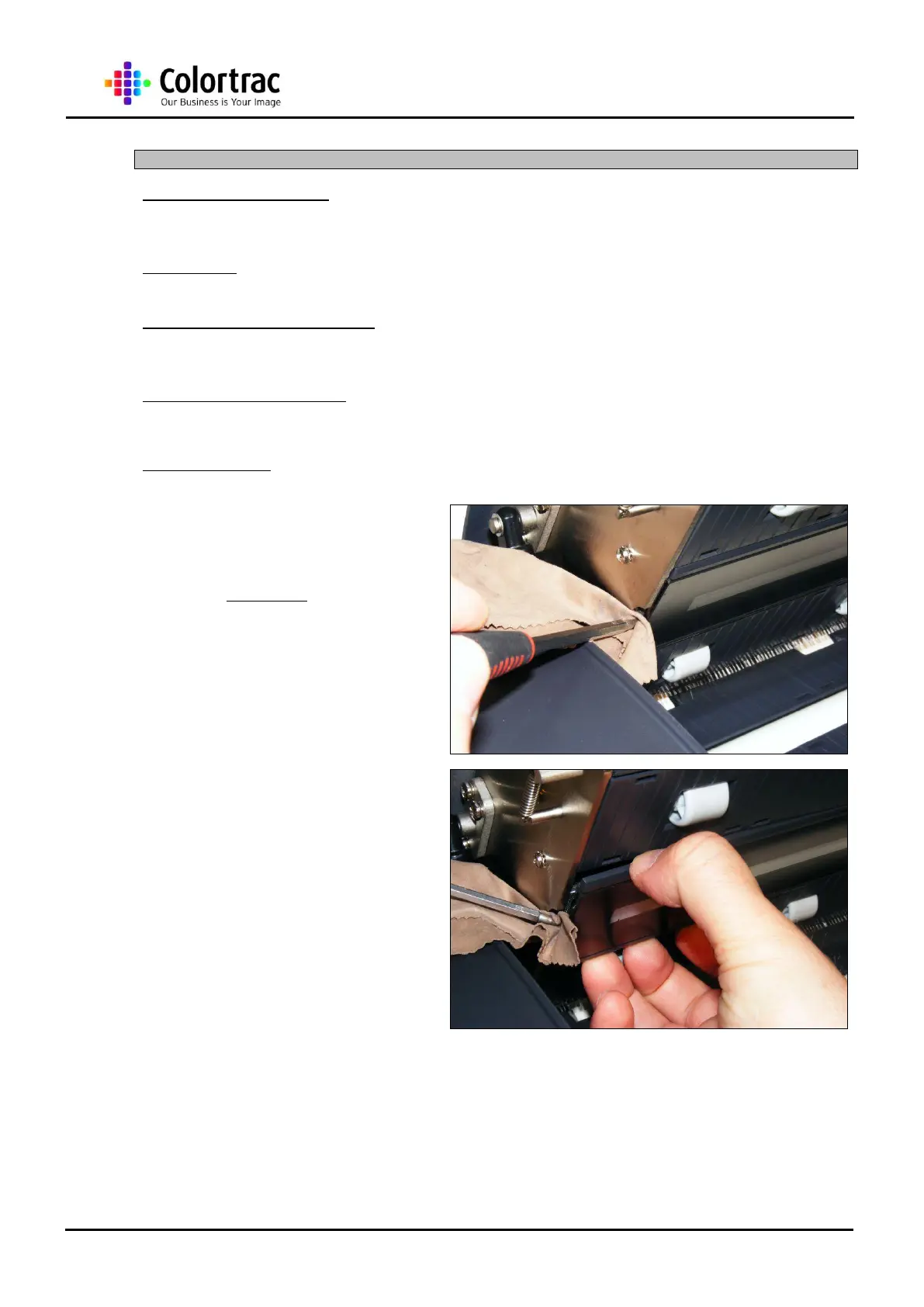

14.3.5 Procedure
1. To Remove, Open the Lid
Assembly and using a Small
Flat Screwdriver and a clean
cloth, insert the screwdriver
into the recess at the left end.
2. Gentle lever back the
screwdriver to prise the
SingleSensor Glass Sub-
Assy away from the
SingleSensor CIS Assy.
