M Series Service Manual
Page 61 of 129

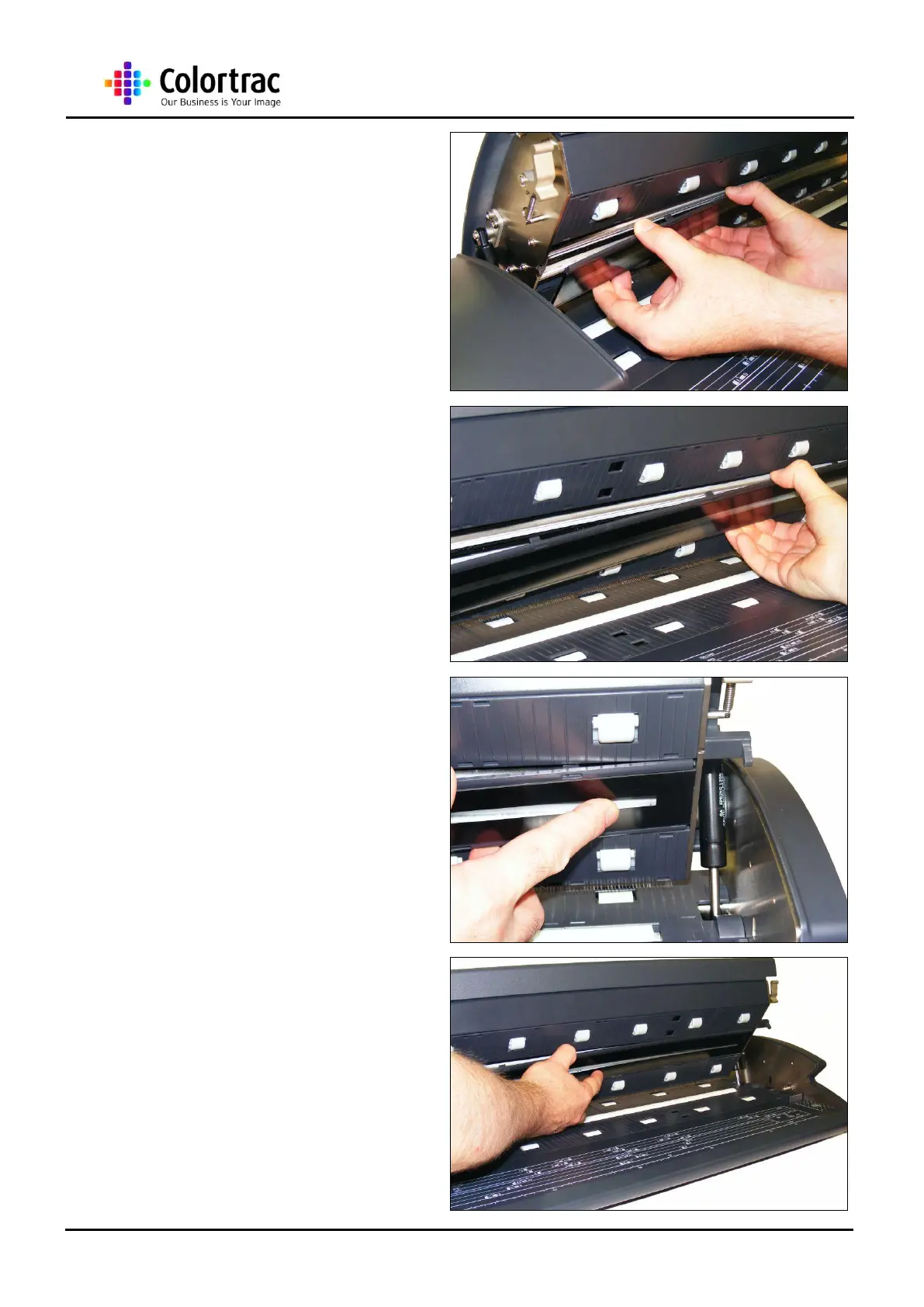

3. Continue to gently pull the
whole SingleSensor Glass
Sub-Assy away from the Lid
Assembly.
4. Remove the SingleSensor
Glass Sub-Assy
5. When refitting the
SingleSensor Glass Sub-
Assy, make sure the right
end is against the End Plate.
6. Position the SingleSensor
Glass Sub-Assy over the
SingleSensor CIS Assy and
make sure it is central all the
way along.
NOTE: Before fitting the SingleSensor Glass
Sub-Assy, clean both sides with a lint free
cloth to remove any dust, dirt or fingerprints.
