14.11 Pinch Roller Assembly
14.11.1 Safety Precautions
Ensure that the power and USB cables are completely disconnected from the scanner unit.
Ensure the scanner is positioned on a stable maintenance platform.
14.11.2 Tools
Small Flat Screwdriver
Pliers
14.11.3 Associated Part Numbers
10H008 : Pinch Roller Assembly (Pack of 4)
14.11.4 Important Information
For all photos, please refer to chapter “7 Photos Information” on page 9.

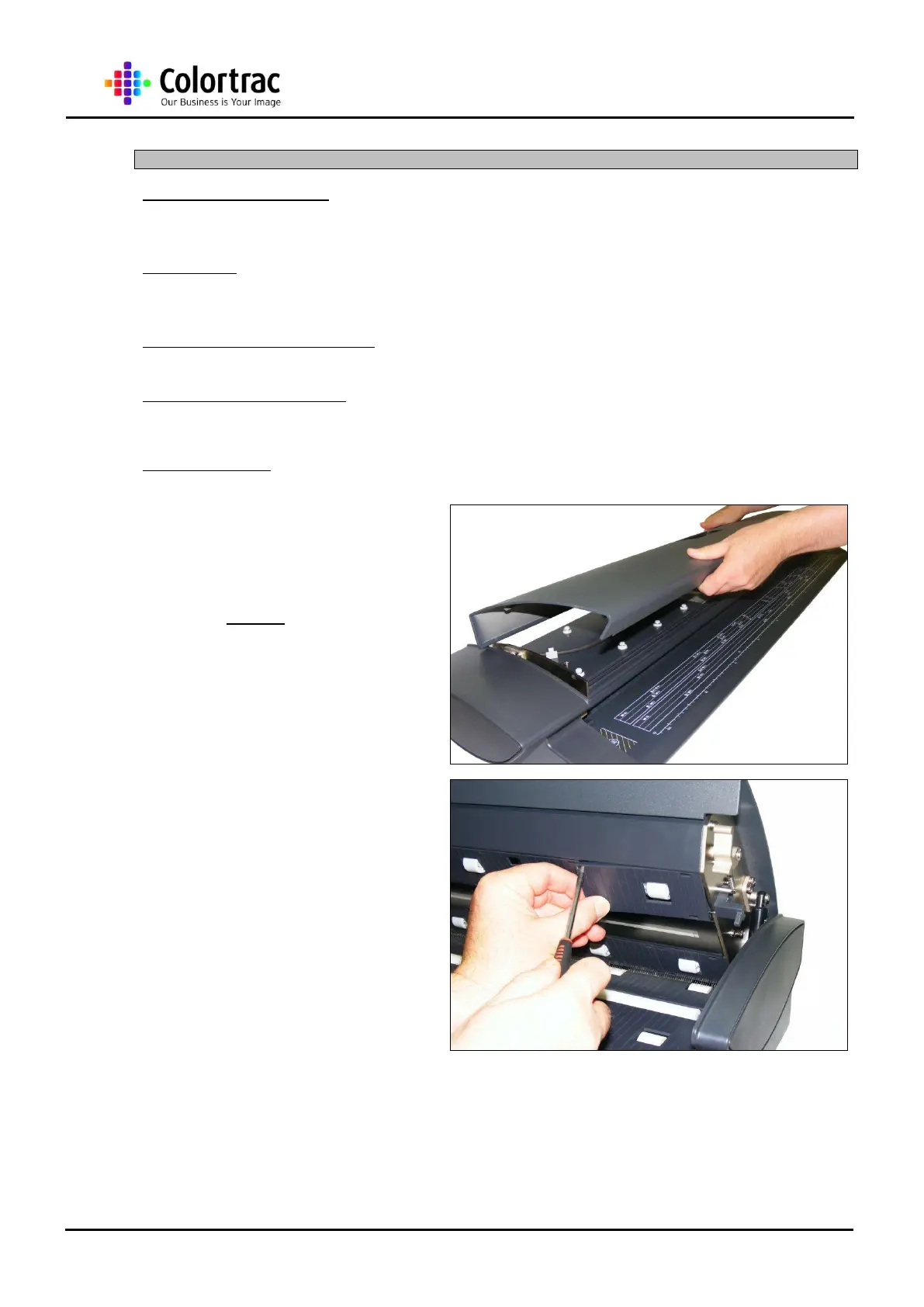

1. Remove the Top Lid Cover
as described in chapter “13.4
Top Lid Cover” page 24.
2. Remove the Upper Covers as
described in chapter “13.7
Upper Covers” page 35.
NOTE: Only the Upper Covers associated with
the particular Pinch Roller Assembly need to
be removed.
