Colortrac M25e - Page 95

M Series Service Manual
Page 95 of 129

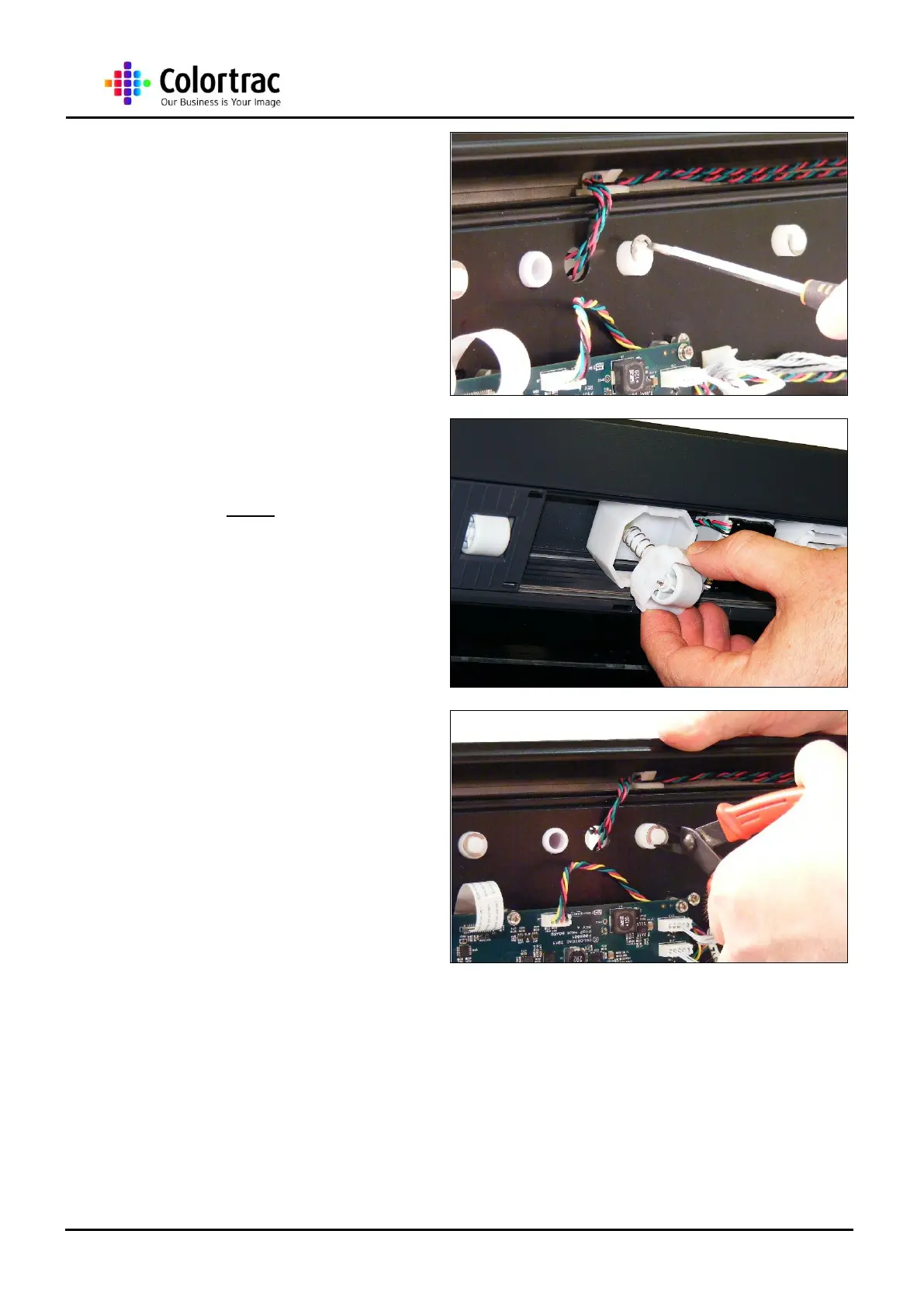

3. Use the Small Flat
Screwdriver to prise the E
Clip from the Pinch Roller
Assembly Shaft needing
removal.
4. While removing the E Clip,
keep hold of the Pinch Roller
Assembly and gently remove
it.
5. To refit, insert the Pinch
Roller Assembly into the
bracket, making sure the
spring is fitted and it is fully
pressed in the correct
orientation.
NOTE: The spring will push the Pinch Roller
Assembly out if not held.
6. While continuing to press in
the Pinch Roller Assembly,
refit the E Clip in the recess
of the shaft.
