Colortrac M25e - Lid Assembly

M Series Service Manual
Page 37 of 129
13.8 Lid Assembly
13.8.1 Safety Precautions
 Ensure that the power and USB cables are completely disconnected from the scanner unit.
 Ensure the scanner is positioned on a stable maintenance platform.
13.8.2 Tools
 Medium Pozi-drive screwdriver.
 Pencil
13.8.3 Associated Part Numbers
 n/a
13.8.4 Important Information
 For all photos, please refer to chapter “7 Photos Information” on page 9.
13.8.5 Procedure

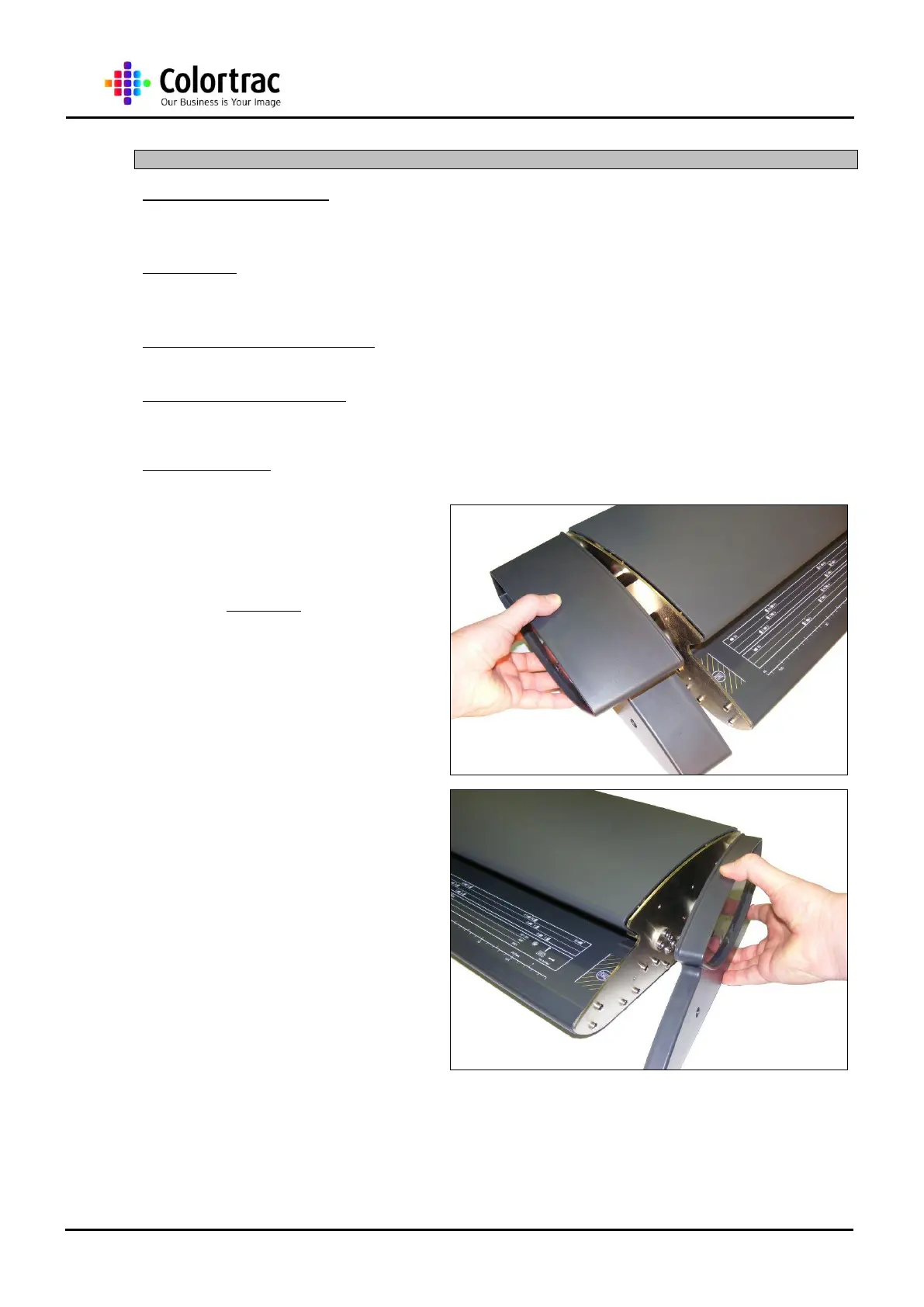

1. To remove the Lid Assembly,
first remove the Left End
Cover as described in
chapter “13.2 Left End
Cover” on page 20.
2. Remove the Right End Cover
as described in chapter “13.3
Right End Cover” on page
22.
