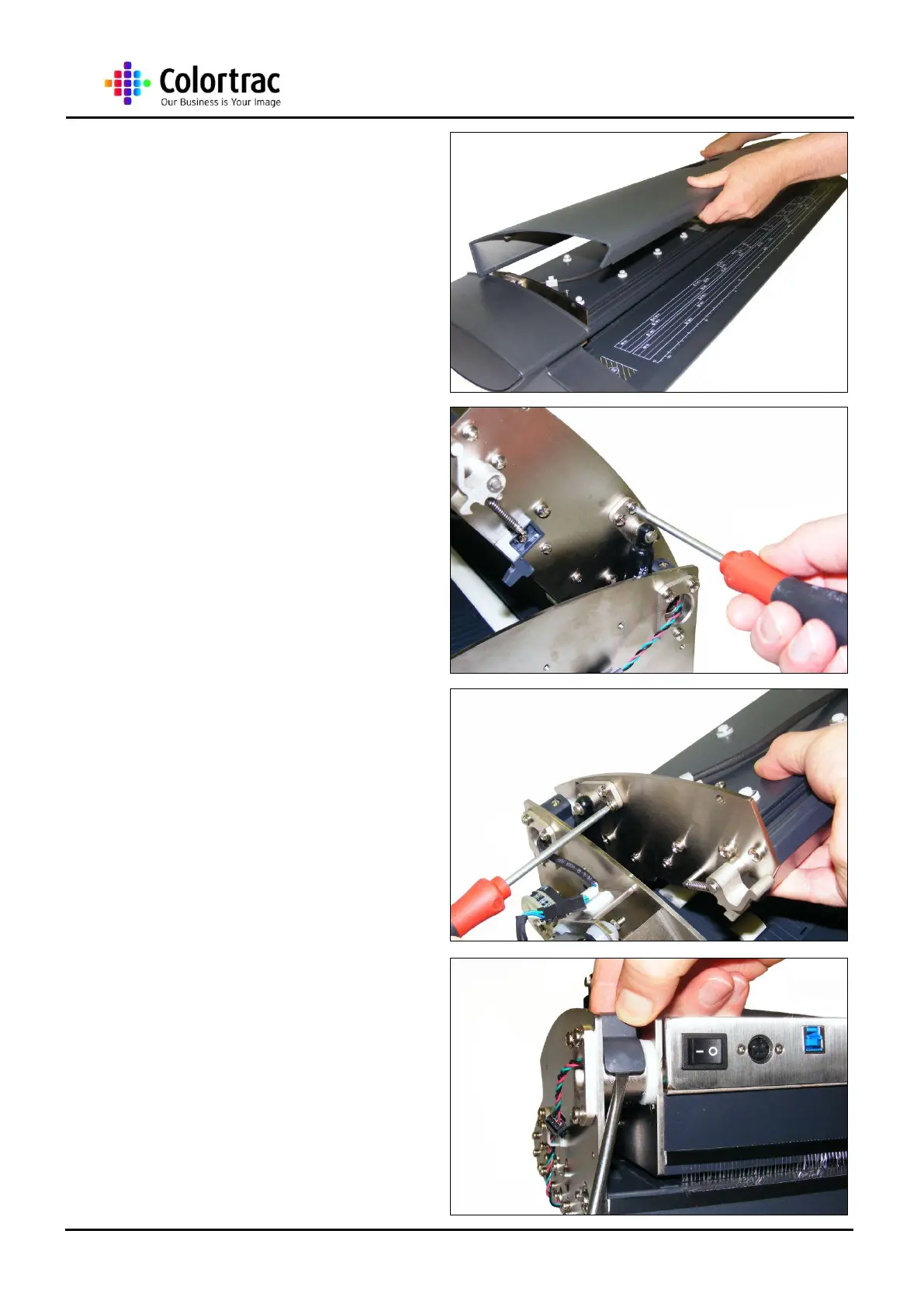

3. Remove the Top Lid Cover
as described in chapter “13.4
Top Lid Cover” page 24.
4. Remove the 3 x M5 screws to
detach the Right Gas Piston
from the Lid Assembly.
5. Remove the 3 x M5 screws to
detach the Left Gas Piston
from the Lid Assembly. Hold
the Lid Assembly securely
with your free hand while
removing these screws. Allow
the Lid Assembly to gently
close down.
6. Use a medium flat
screwdriver to release the
lugs on the Plastic Screw
Cover from the retaining
holes on either side of the
Outer Hinge Bracket.
