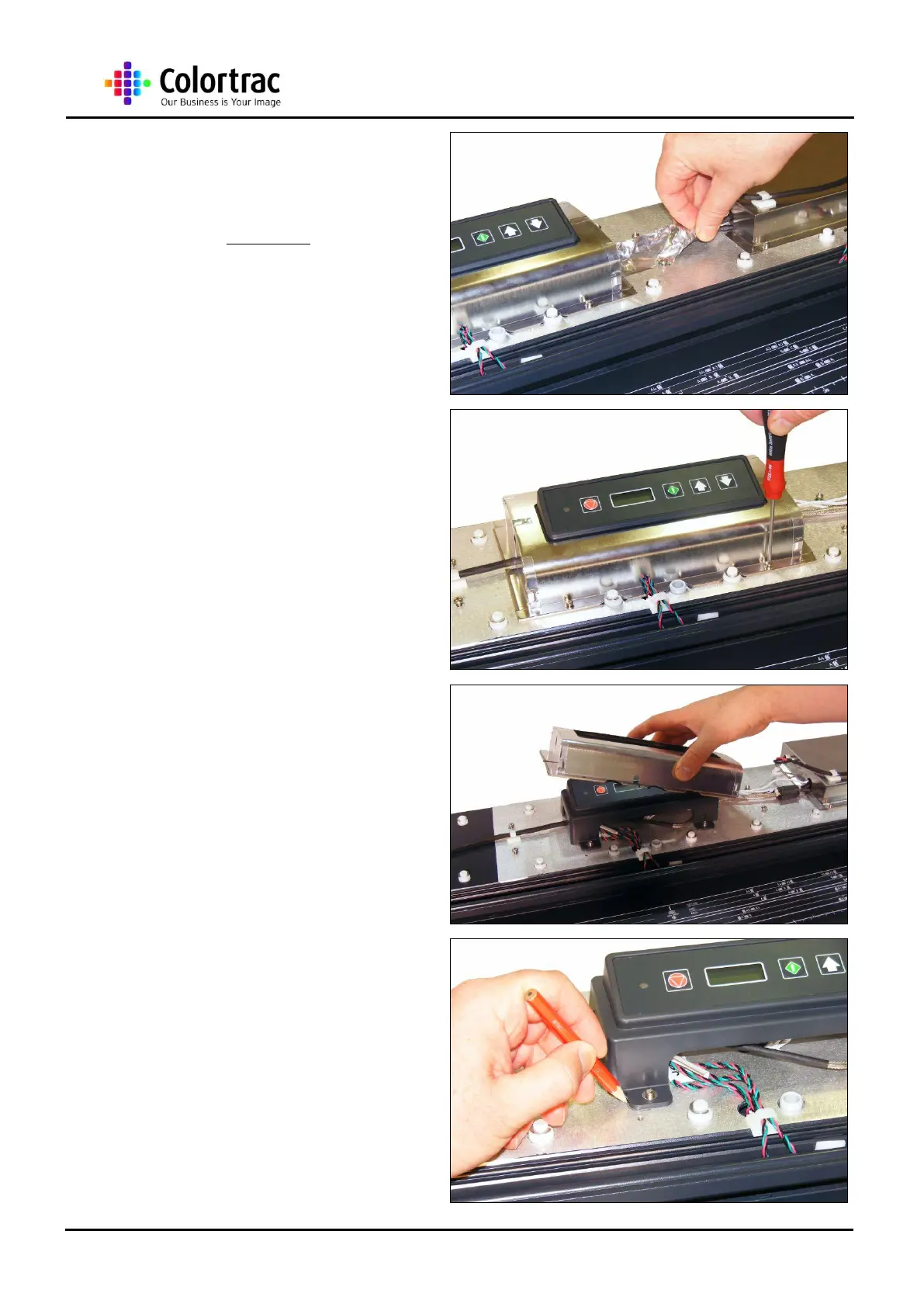

3. For the M40, remove the
aluminium EMC Tape and
keep it in a safe place to be
refit later.
4. Remove the 4 x M3 screws
holding the Control Board
Bracket Cover.
5. Remove the Control Board
Bracket Cover.
6. Before removing the Control
Board Bracket Assembly, use
a pencil to mark its position.
