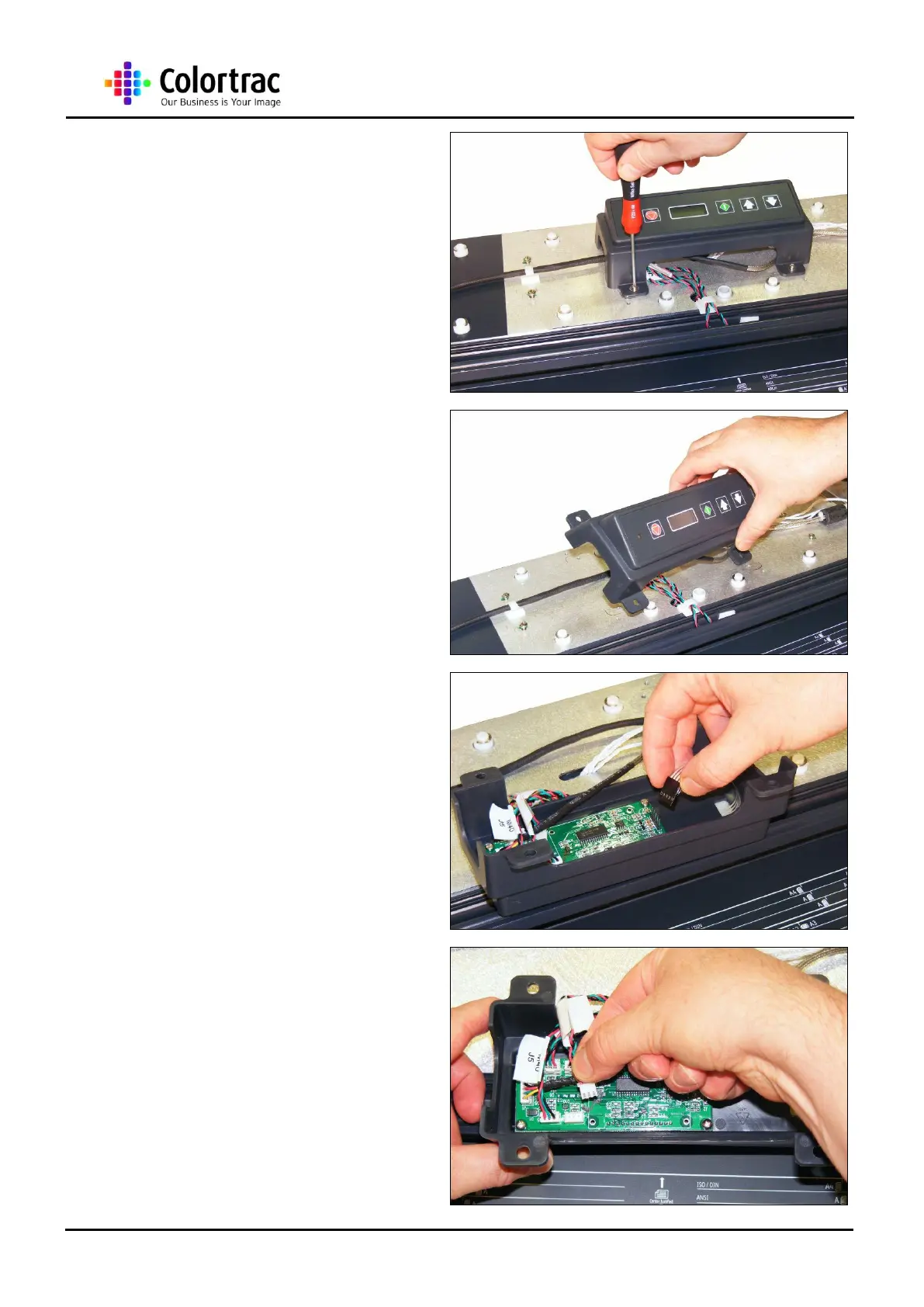

7. Remove the 4 x M3 screws
holding the Control Board
Bracket Assembly to the Lid
Assembly.
8. Rotate the Control Board
Bracket Assembly to gain
access to the Control Board
and cables.
9. Disconnect the Key Pad
Ribbon Cable from the
Control Board.
NOTE: This only needs to be done if the
Control Board is being removed from the
bracket.
10. Disconnect the 4 x Paper
Sensor Cables and the
Control Board Cables from
the Main Board.
