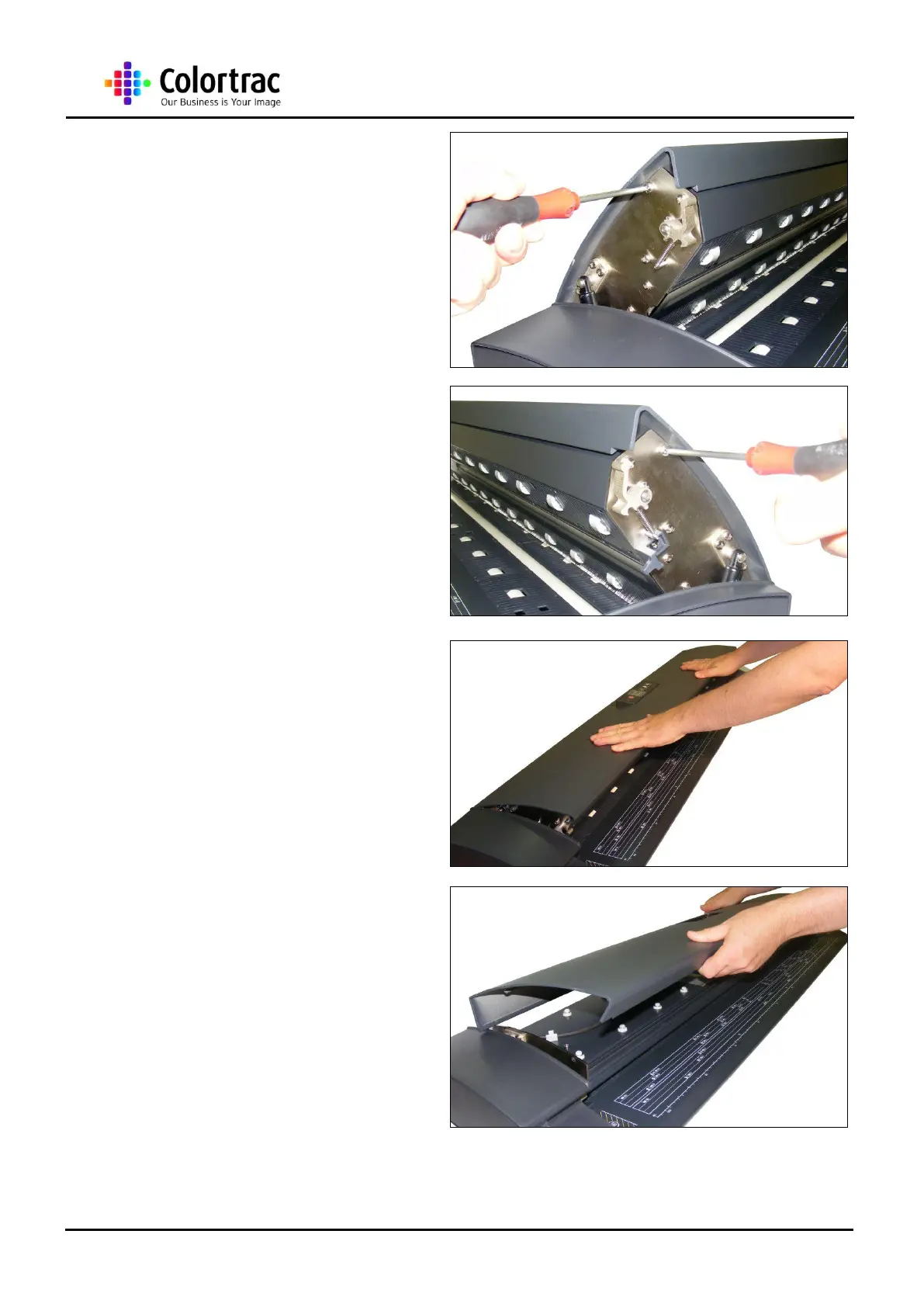

3. Carefully remove the 2 x M4
screws holding the left end of
the Top Lid Cover. Take care
not to drop the screws while
removing them.
4. Carefully remove the 2 x M4
screws holding the right end
of the Top Lid Cover. Take
care not to drop the screws
while removing them.
5. Close the Lid Assembly
making sure both Lid Latches
lock securely.
6. Carefully lift the Top Lid
Cover off from the Lid
Assembly.
