Colortrac M25e - Page 50

M Series Service Manual
Page 50 of 129

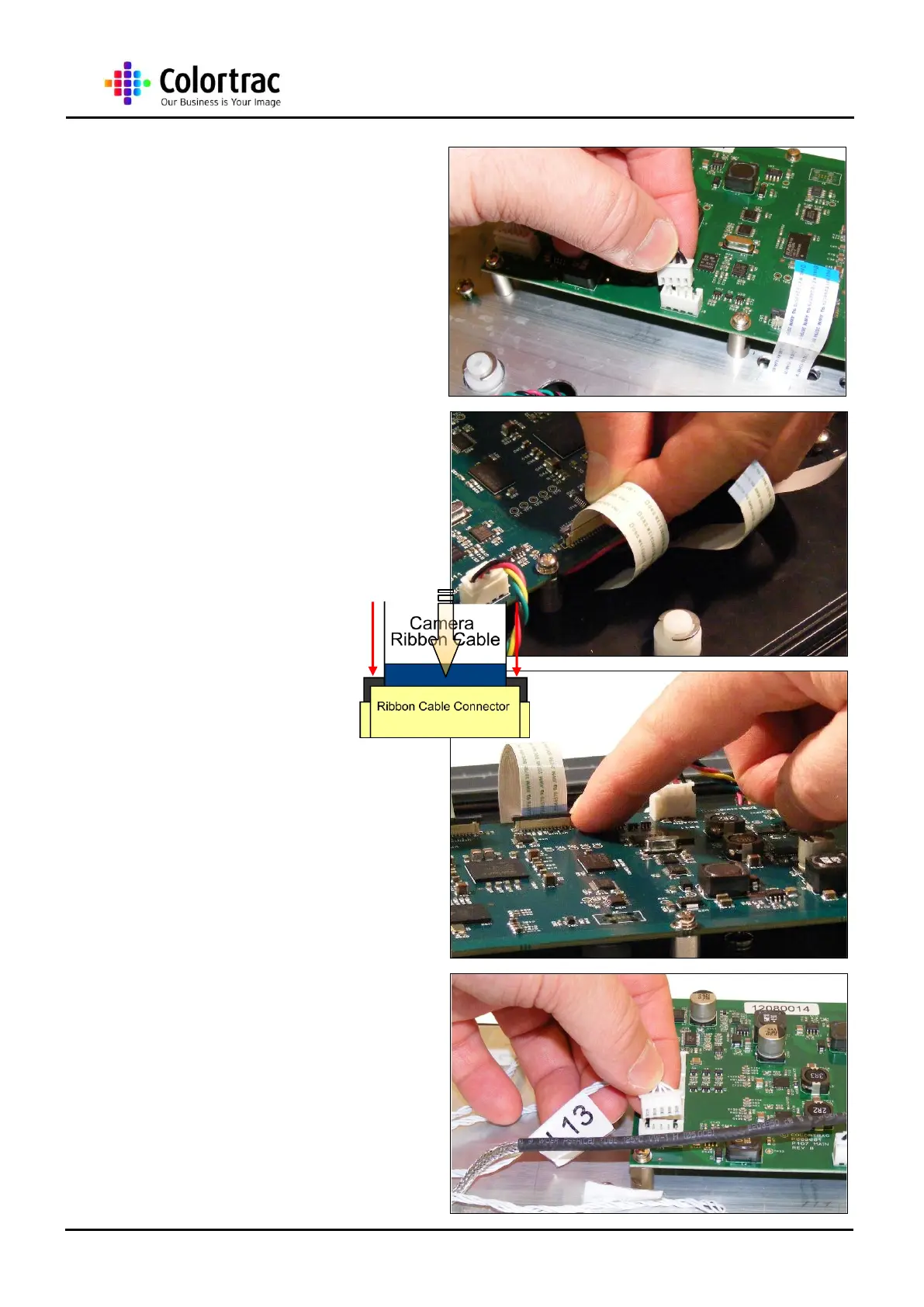

18. Reconnect the Control Board
Cable at J9, as well as the
Motor Control Cable.
19. Re-insert the CIS Ribbon
cables into J1 - J3, making
sure the locking plate is up
before inserting them.
20. When the CIS Ribbon cable
is fully in place, secure it by
pressing down both sides of
the locking plate.
21. Reconnect the 4 x LED
cables, ensuring the correct
cable is inserted in the
correct plug.
