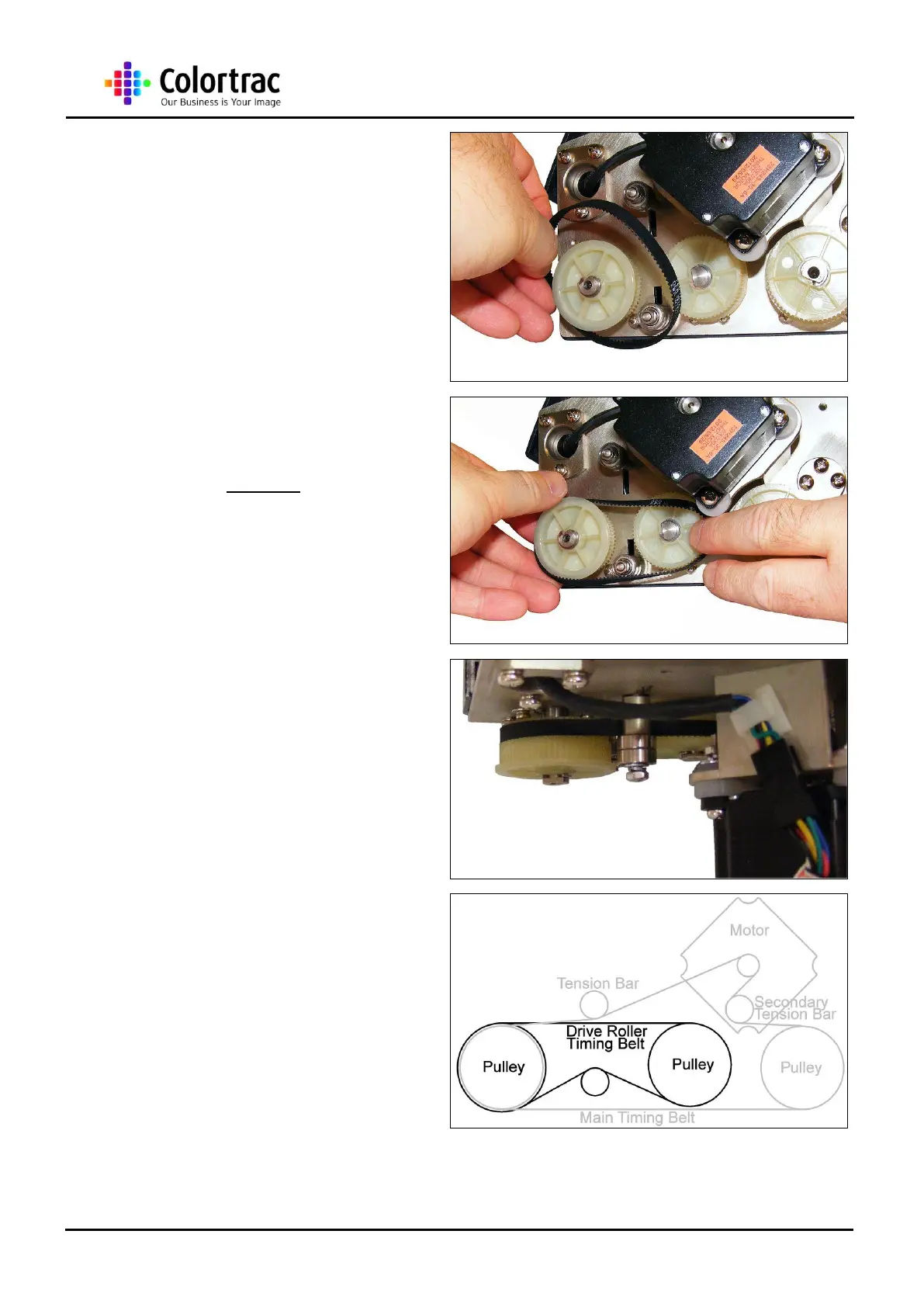

3. Remove the Drive Roller
Timing Belt from around the 2
pulleys.
4. To replace the Drive Roller
Timing Belt, position around
the Rear Drive Roller Pulley
and then the Hold Up Roller
Unit Pulley.
5. Make sure the Drive Roller
Timing Belt goes around the
part of the Rear Drive Roller
Pulley nearest the End Plate.
6. Make sure the Drive Roller
Timing Belt goes over the 2
larger pulleys, and over the
top of the Drive Roller Timing
Belt Tension Bar.
