IGS-NT Installation Guide

130

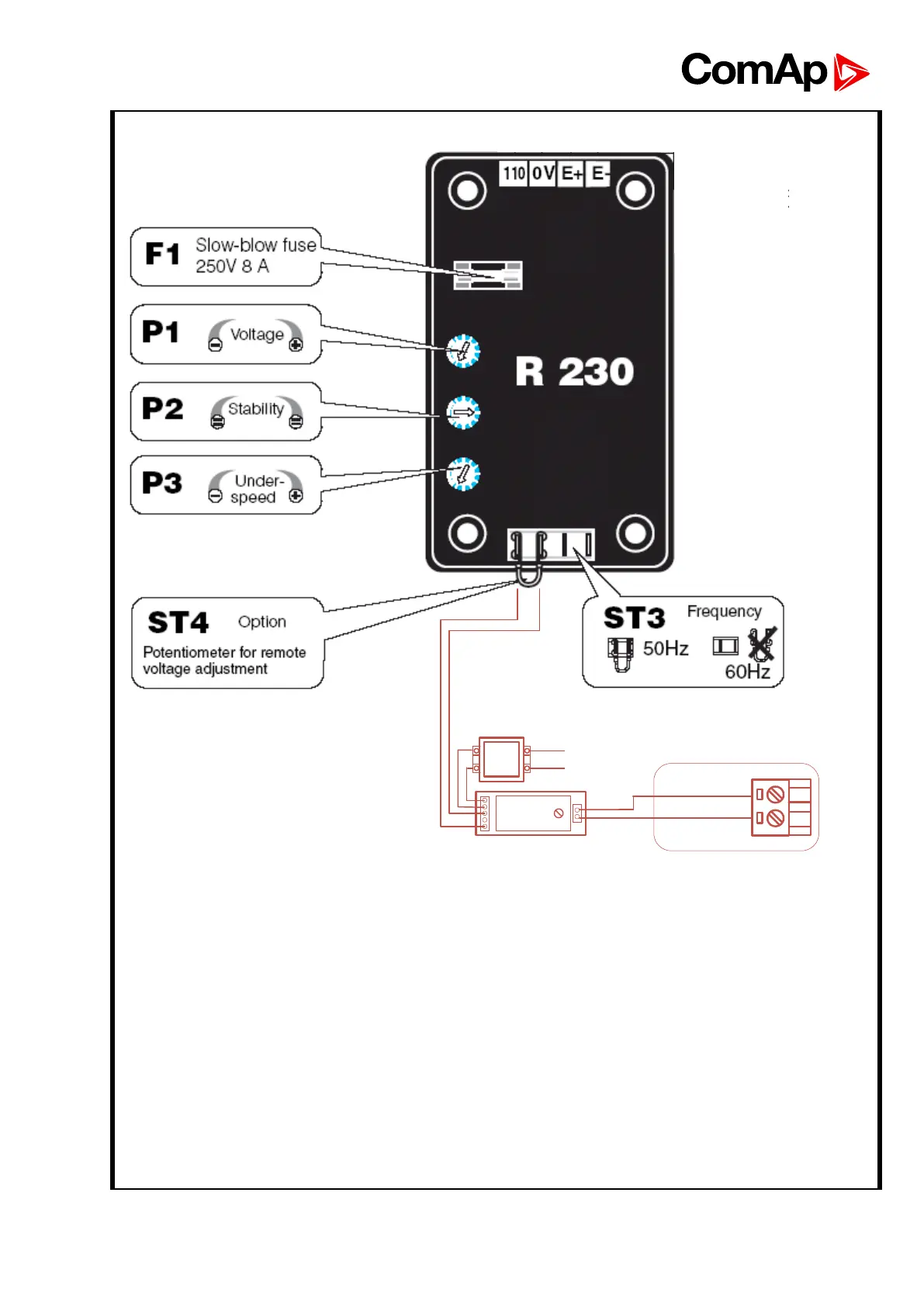

Leroy Somer: R 230

AVRi+

AVRi-

from generator

iG-

AVRi

TRANS

230/ 400VAC

0 VAC

AVRI COM

AVRI OUT

OUT1

OUT2

Module R726 is not required.

AVRi trim to minimum counter clockwise.

Volt/PF ctrl:

AVR DCout bias = 50%

VoltRegChar = POSITIVE
