ION
®
-E Series Hardware Installation Guide M0201AA
Page 14 © June 2017 CommScope, Inc.
WCS-2 and WCS-4 Subracks and Modules
WCS-2 AND WCS-4 SUBRACKS AND MODULES
ThissectionprovidesinformationontheWCS-4andWCS-2Subracks(Figure3-1),whichdependentontheir
configuration,becomeaCentralAreaNodes(CAN)oraTransportExpansionNodes(TEN).
TheCANistheserver-levelcontrolandprimarysignaldistributionwithinanION-Esystem.
TheTENisthesecondarydistributionpointthatconnectstoaCANusingMulti-ModeorSingle-Mode
fiber.
TheWCS-4isfourRack-Units(RUs)high,andistypicallyusedasaCAN,butcanalsoserveasaTEN.
TheWCS-2istwoRUshigh,andistypicallyusedasaTEN,butcanalsoserveasaCAN.

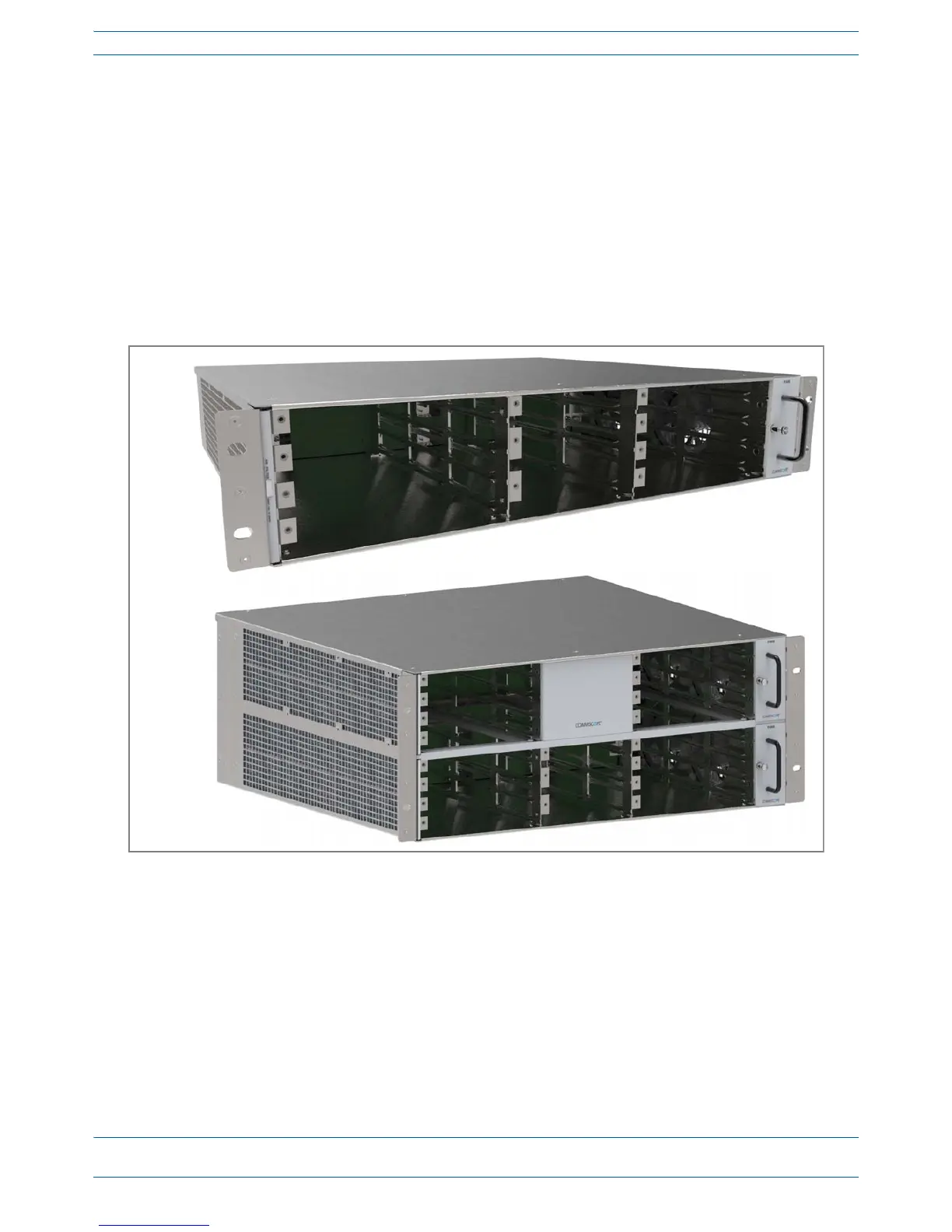

Figure 3-1. WCS-2 and WCS-4 Subracks
WCS-2
Subrack
WCS-4
Subrack
