Point Of Interface (e-POI) Subrack
POINT OF INTERFACE (E-POI) SUBRACK
TheuniversalION-EPointOfInterface(e-POI)Subrackprovidespower,housing,andcommunicationsforup
toeighte-POIRFDonor(RFD)Cards.[
what does the “e” in e-POI mean?]

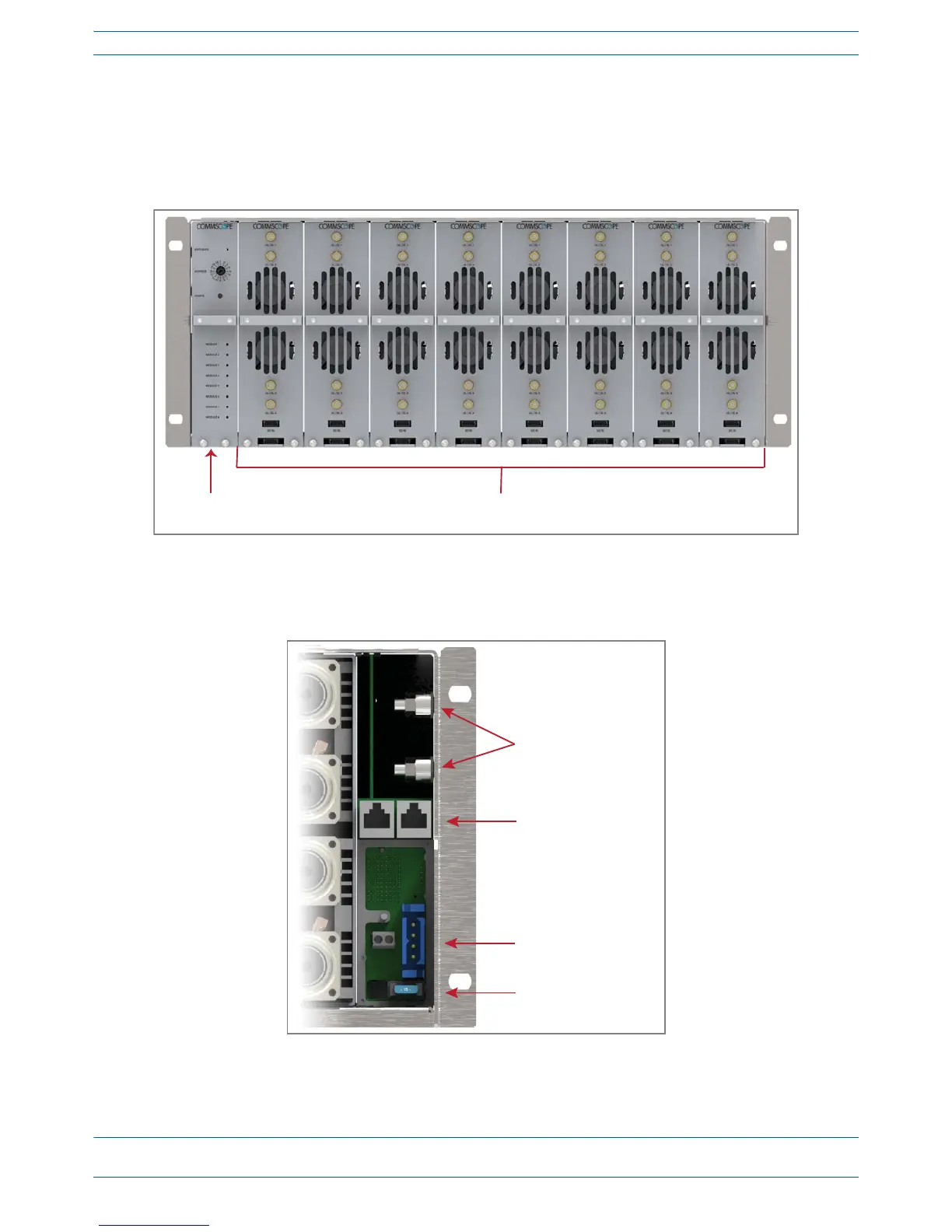

e-POI Subrack Back Panel Connectors
Interface Car
(IFC)
e-Poi Subrack supports up to 8 RFD Cards
Ground studs
Communicaon ports
(to WCS Subrack)
12 Vdc Input connector
(from WCS Subrack)
15A Blade Fuse
