Point Of Interface (e-POI) Subrack
Interface Card (IFC)
TheInterfaceCard(IFC)providescommunications,status,andalarmsforthee-POIModulesinstalledinthe
e-POISubrack.
UNRESOLVED: Not sure about IFC Status LED. In original e-POI instructions, graphic labeled it the “IFC
module status,” but the definition referred to “e-POI” so is this Status for the IFC or the full
e-POI Subrack?
UNRESOLVED: For e-POI Module Status LEDS” Red state, original doc said was “IFC temperature alarm,”
which does not make sense, as there are 8 LEDs. However, please verify that my correction
above is correct.

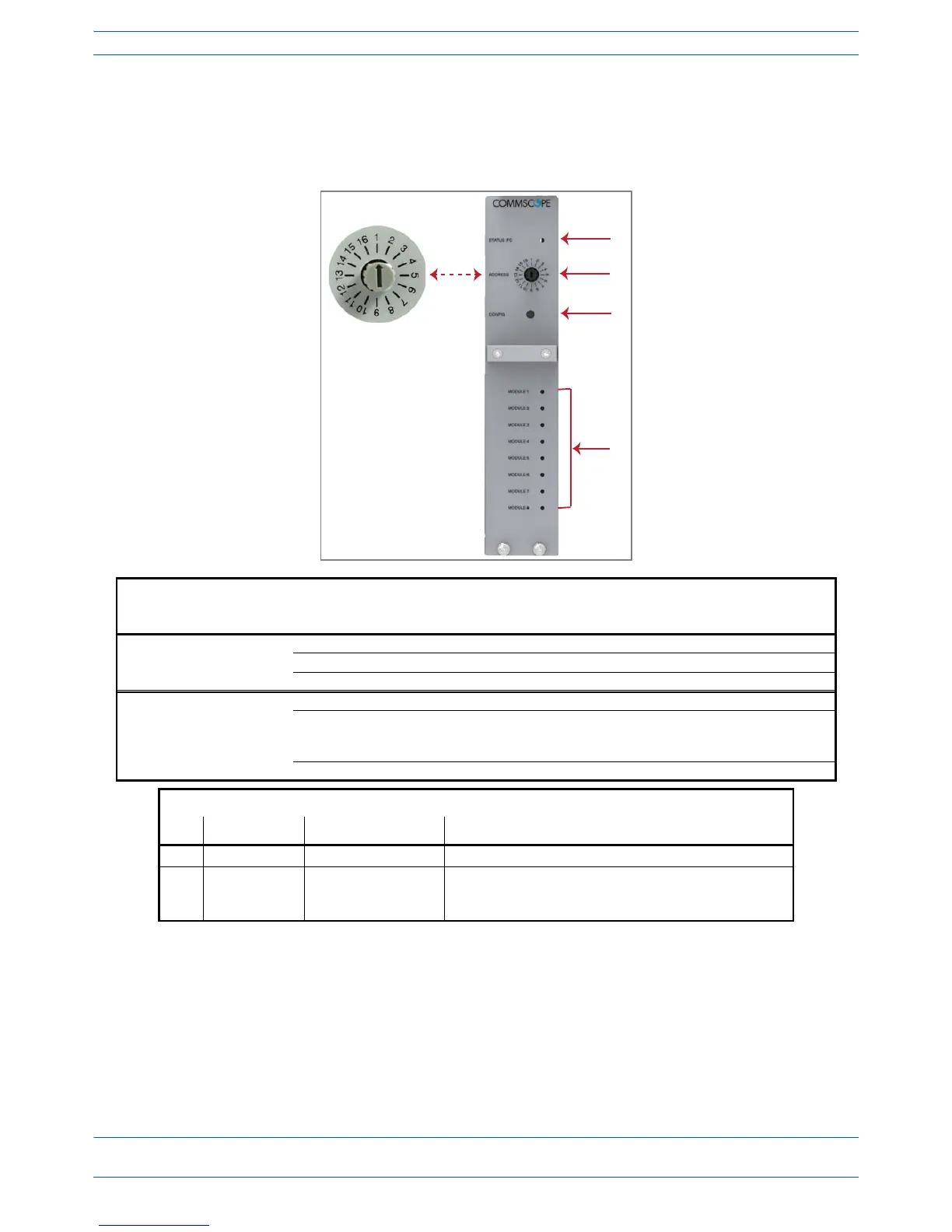

IFC LEDs
Ref # LED LED Color Description
1 Status • Off • IFC not fully seated in slot or not receiving power.
• Green • IFC functioning to specification.
•Red •Active alarm on IFC.
4 e-POI Module
Status 1 - 8
• Off • e-POI Module in corresponding slot is not receiving power.
• Green • e-POI Module in corresponding slot is functioning to specification. RFD Card
Status LED must be green before connecting corresponding RF signals to
input.
•Red •e-POI Module in corresponding slot has active temperature alarm.
IFC Connectors
Ref # Component Device Function
2 Address switch Rotary dial Must be set to 1.
3 Config button Pushbutton Alerts ION-E Software to scan for and remove references to
removed RFD Cards; see "Removing an e-POI Module from an
e-POI Subrack” on page 40.
