Identifying UAPs in the ION-E Software
UAPnumberingisbasedontheCATcardsslotandportnumbersintheassociatedCANorTENandwhether
theUAPisdirectlyconnectedtotheCATcard(a)orconnectedtotheAUXportofanotherUAP(b).
TheION-EGUIlabelsUAPsasfollows:
<DisplayName>.<Slot ID>.<Port#><a or b>
Where
•<DisplayName>istheUAPname,suchasUAPorUAP-X
•<Slot ID>istheWCS-2orWCS-4Subrackslot(L1toL8),shownasaalpha-numericalintegerfromL1-L8
•<Port #>istheCATCardPortnumber(1-4),shownasanumericalintegerfrom1-4
•<a or b>iswhethertheUAPisthemain/primaryUAP(a)orthecascaded/secondaryUAP(b).
UAPswithexternalantennaconnectorsareidentifiedasUAP-XontheSignal Distributionpageasshownin
Figure6-1.

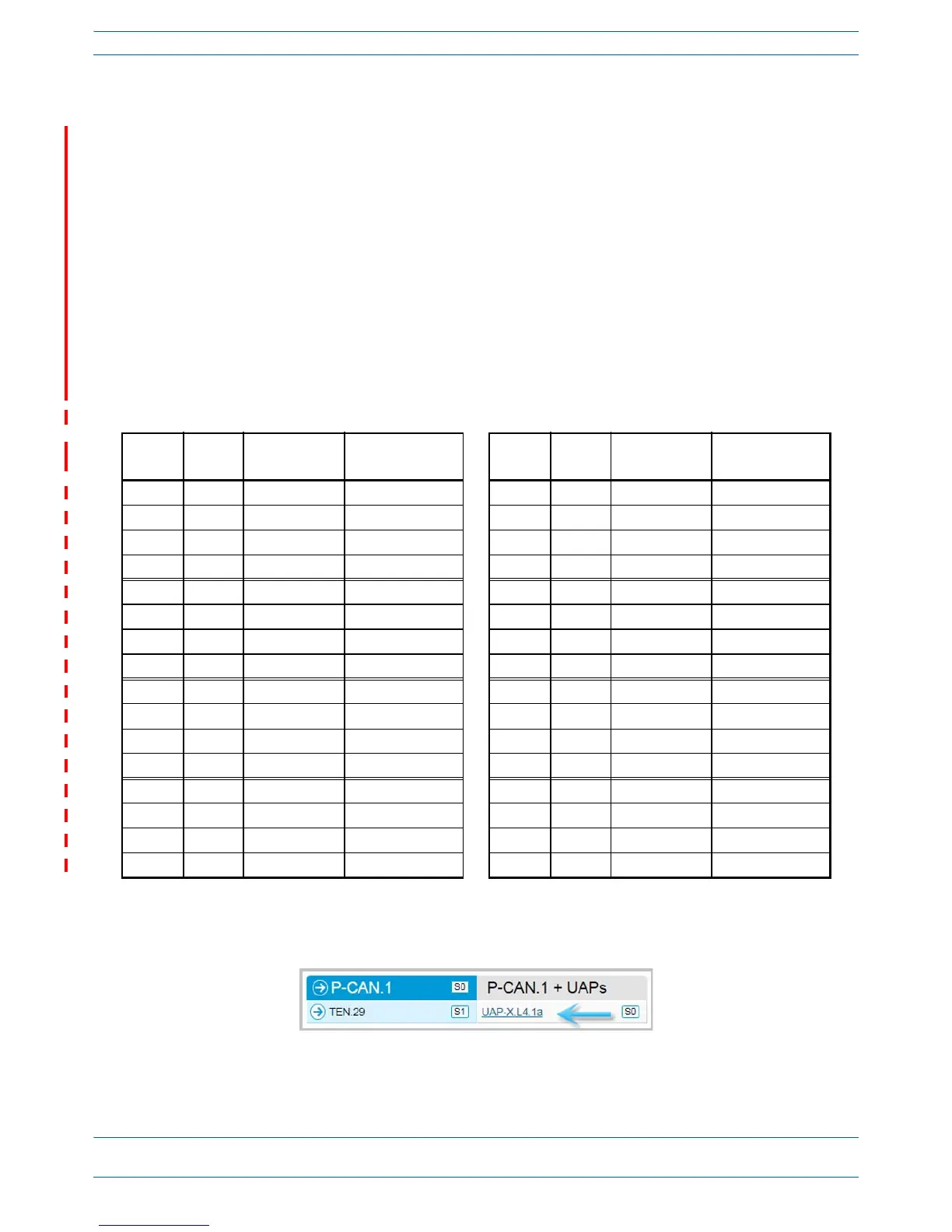

Figure 6-1. Identifying UAP-X Units in the ION-E Software
Table 6-1. UAP Identification in the ION-E Software
WCS Slot CAT Port Primary UAP
(Direct Connect)
Secondary UAP
(AUX Port Connect)
WCS Slot CAT Port Primary UAP
(Direct Connect)
Secondary UAP
(AUX Port Connect)
L1 1 UAP.L1.1a UAP.L1.1b L5 1 UAP.L5.1a UAP.L5.1b
L1 2 UAP.L1.2a UAP.L1.2b L5 2 UAP.L5.2a UAP.L5.2b
L1 3 UAP.L1.3a UAP.L1.3b L5 3 UAP.L5.3a UAP.L5.3b
L1 4 UAP.L1.4a UAP.L1.4b L5 4 UAP.L5.4a UAP.L5.4b
L2 1 UAP.L2.1a UAP.L2.1b L6 1 UAP.L6.1a UAP.L6.1b
L2 2 UAP.L2.2a UAP.L2.2b L6 2 UAP.L6.2a UAP.L6.2b
L2 3 UAP.L2.3a UAP.L2.3b L6 3 UAP.L6.3a UAP.L6.3b
L2 4 UAP.L2.4a UAP.L2.4b L6 4 UAP.L6.4a UAP.L6.4b
L3 1 UAP.L3.1a UAP.L3.1b L7 1 UAP.L7.1a UAP.L7.1b
L3 2 UAP.L3.2a UAP.L3.2b L7 2 UAP.L7.2a UAP.L7.2b
L3 3 UAP.L3.2a UAP.L3.2b L7 3 UAP.L7.2a UAP.L7.2b
L3 4 UAP.L3.4a UAP.L3.4b L7 4 UAP.L7.4a UAP.L7.4b
L4 1 UAP.L4.1a UAP.L4.1b L8 1 UAP.L8.1a UAP.L8.1b
L4 2 UAP.L4.2a UAP.L4.2b L8 2 UAP.L8.2a UAP.L8.2b
L4 3 UAP.L4.3a UAP.L4.3b L8 3 UAP.L8.3a UAP.L8.3b
L4 4 UAP.L4.4a UAP.L4.4b L8 4 UAP.L8.4a UAP.L8.4b
