CommScope ION-E Series User Manual

ION
®
-E Series Hardware Installation Guide M0201AA
Page 52 © June 2017 CommScope, Inc.
UAP-X
TheUAP-XisfunctionallyidenticaltotheUAP,butisdesignedtoworkwithexternalantennasratherthanthe
internalantennasusedinthestandardUAP.
The UAP-X is intended for indoor use only.
UAP-X Connectors
Ref # Component Device Function
1 TX port
Female QMA
connector
Connects the UAP-X yo external antenna.
2 RX port
3 Main port RJ45 connector Provides data and power to UAP over Cat6A.
4 AUX port RJ45 connector Provides data and power to 2nd UAP or Ethernet devices.
5 Power button Pushbutton switch Turns power to UAP on/off. Power to the UAP may also be shutdown via the
ION-E Series Software.
CAUTION! Prior to disconnecting a Cat6A cable from the UAP-X, press
the red Power button to power off the UAP-X.
UAP-X Status LED (unlabeled)
Ref # LED Color Description
6 • Blue • UAP is transmitting as expected.
• Fast-flash blue • Unit Identifier activated in the ION-E GUI; for information on how to flash identify a UAP, see “Flash UAP
Led” section of the ION-E Series software configuration guide that corresponds to the ION-E Software
Release installed on the this ION-E system.
• Slow-flash blue • UAP firmware update is in process.
• Yellow • Active alarm; see Active Alarms page in GUI.

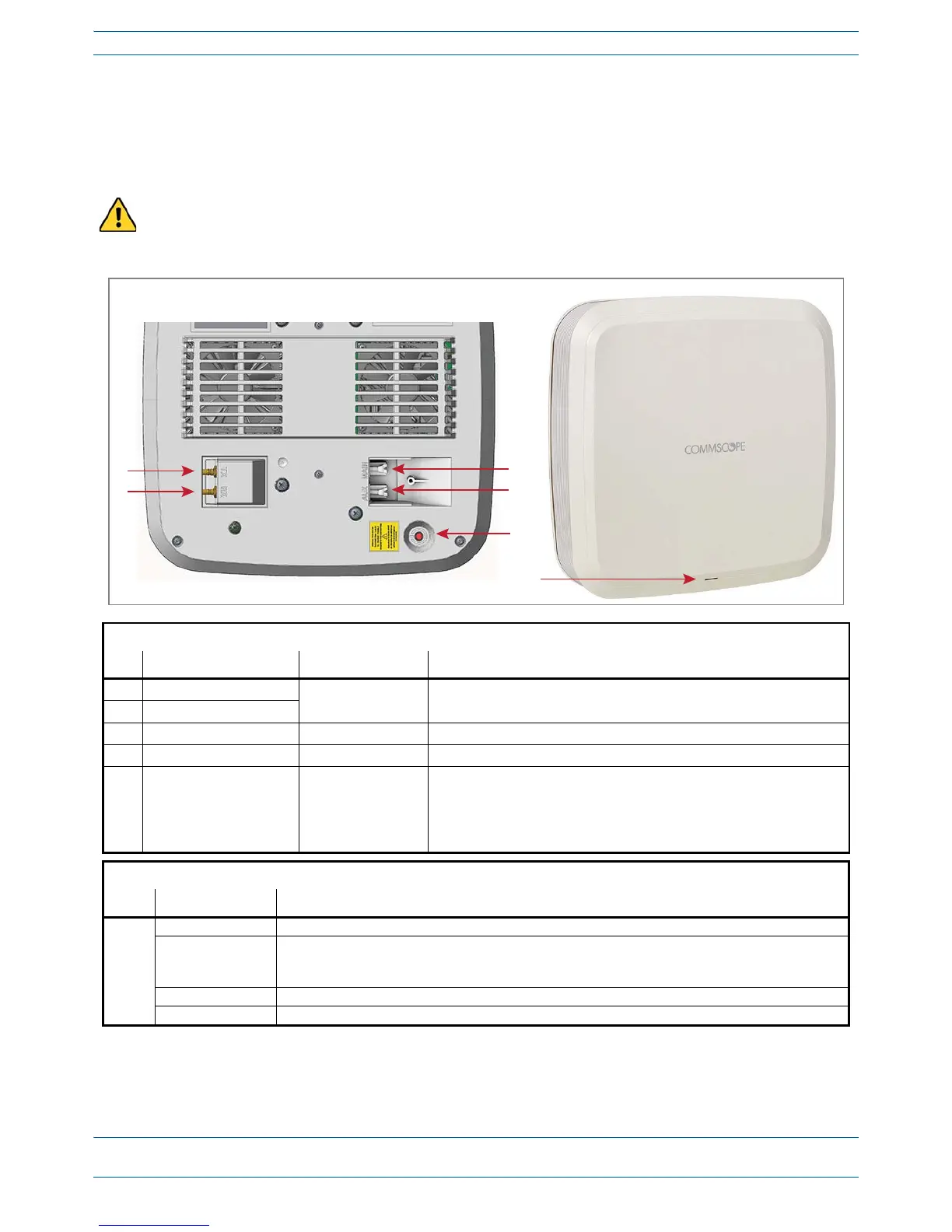

Front of UAP-X
6
Boom of UAP-X (paral view)
1
3
2
4
5
