Compaq Portable II - 512;2048 Kbyte Memory Expansion Board Jumper Settings

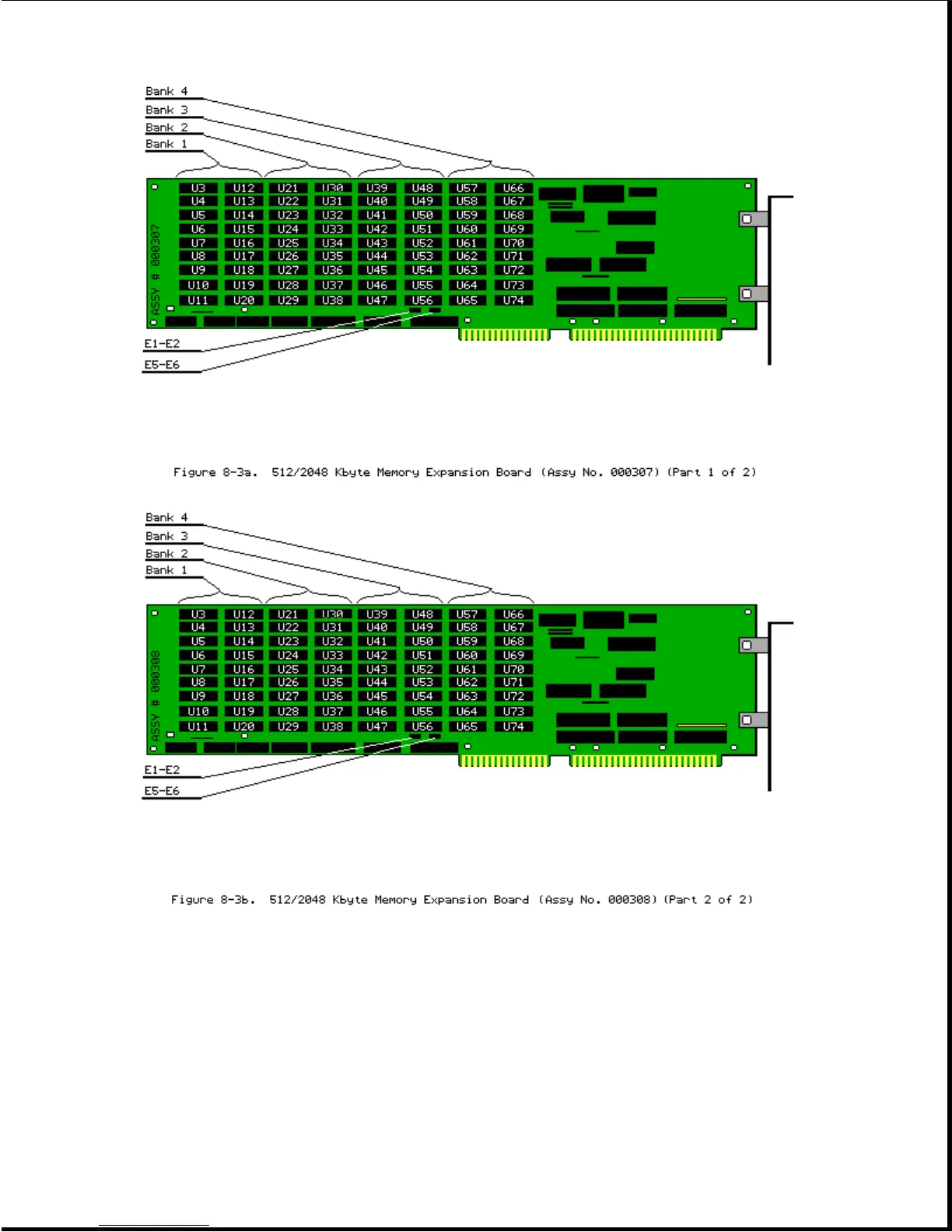

Refer to Tables 8-2 and 8-3 when setting the jumpers on the 512/2048 Kbyte
Memory Expansion Board.
Table 8-2. 512/2048 Kbyte Memory Expansion Board Jumper Settings
==============================================================================
Settings Address Range *
------------------------------------------------------------------------------
E1 to E2, E5 to E6 1 to 3 megabyte
E1 to E2, E4 to E5 2.5 to 4.5 megabyte
------------------------------------------------------------------------------
* Memory address range is dependent on system memory board configuration.
