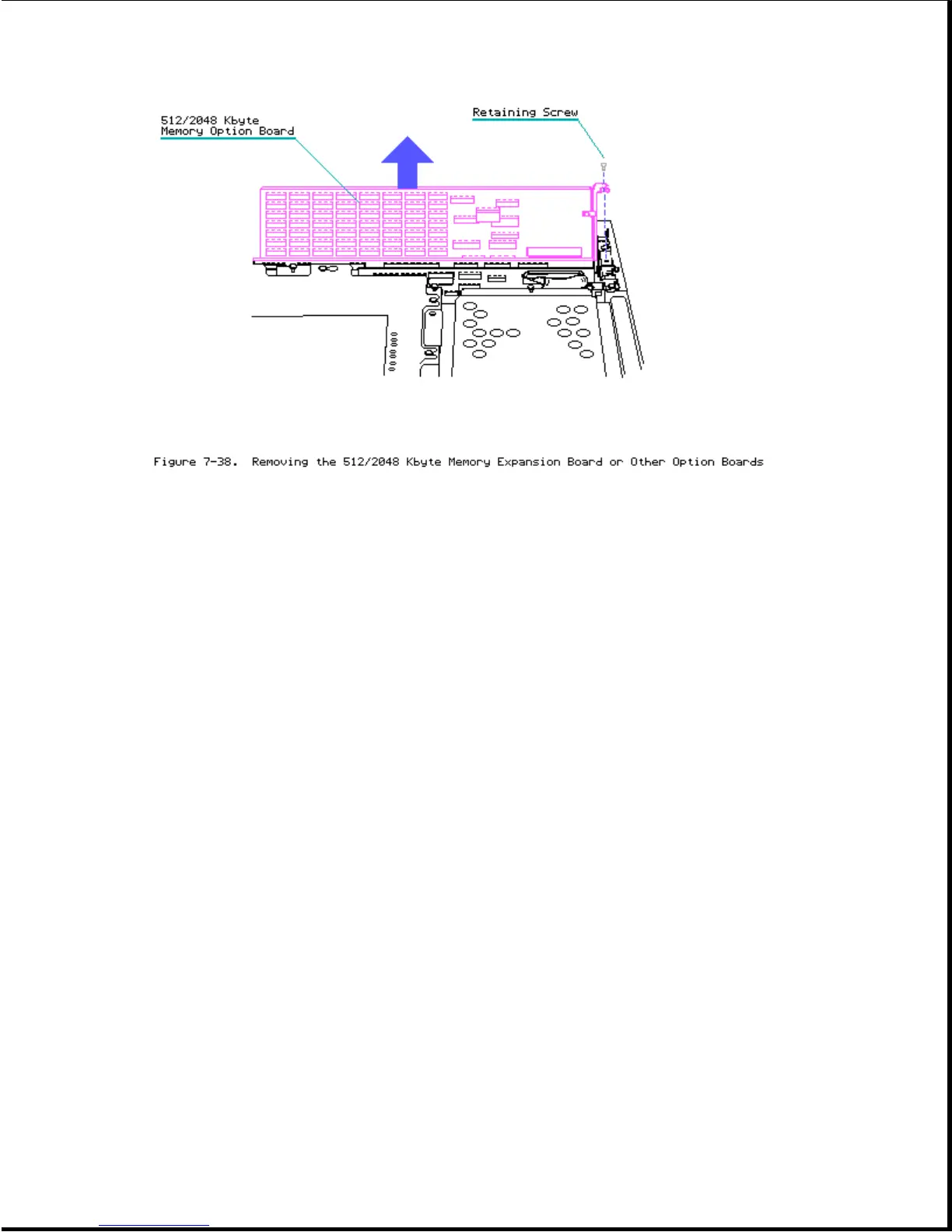

To replace the 512/2048 Kbyte Memory Expansion Board or other option boards,
reverse steps 1 through 4.
Chapter 7.17 Handle
To remove the handle from the computer, complete the following steps:
1. Remove the outer access casing (see Section 7.3).
2. Remove the board slots access plate (see Section 7.10).
3. Remove all controller and option boards installed (see Sections 7.14
through 7.16).
4. Using a Torx screwdriver, remove the two mounting screws that secure the
handle to the system chassis, and remove the handle system chassis
(Figure 7-39).
