Compaq Portable II User Manual

To remove the video display unit (VDU), complete the following steps:
1. Remove the keyboard assembly (see Section 7.4).

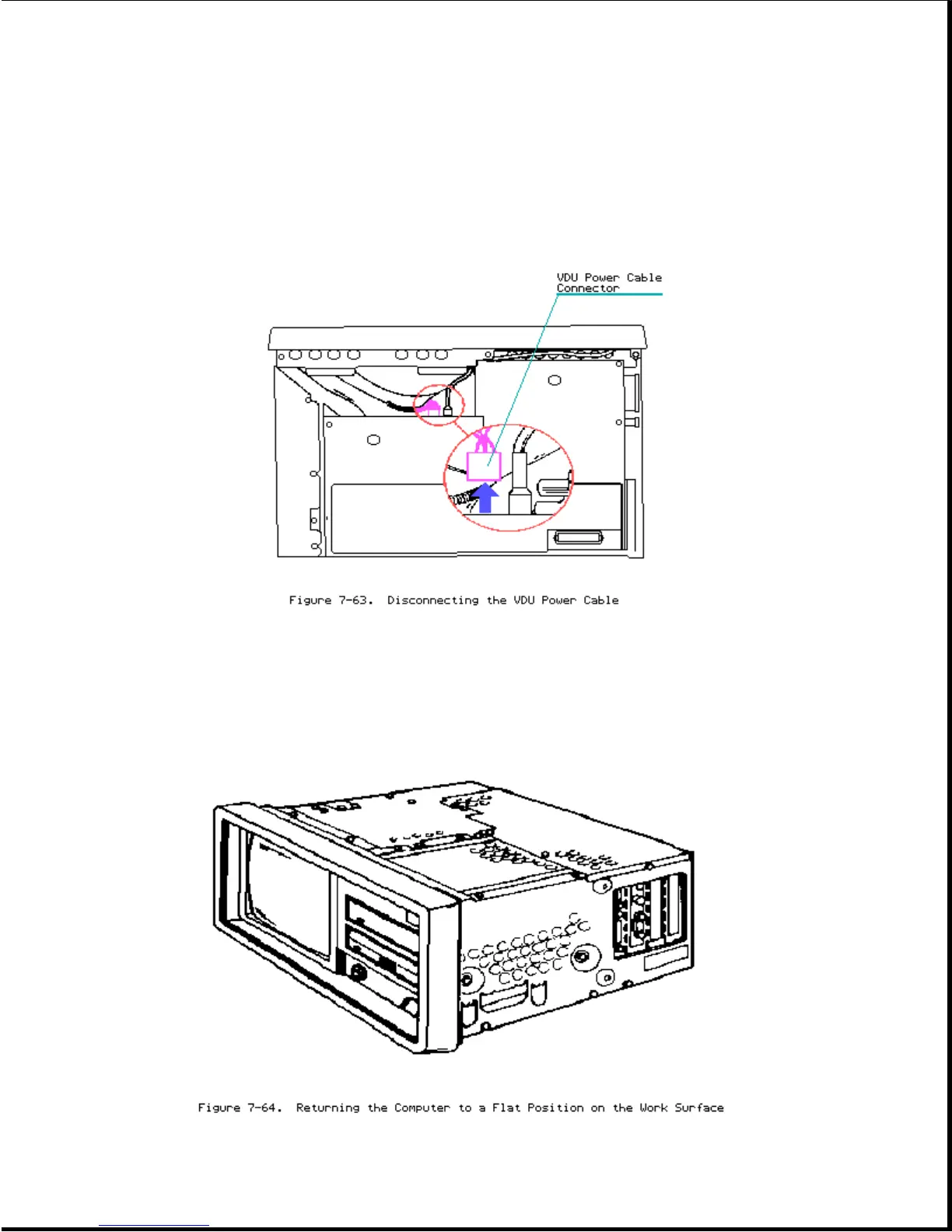

2. Disconnect the VDU power cable (Figure 7-63).
3. Lower the computer so that it appears as illustrated Figure 7-64.

Compaq Portable II Specifications

General

Brand	Compaq
Model	Portable II
Category	Desktop
Language	English
