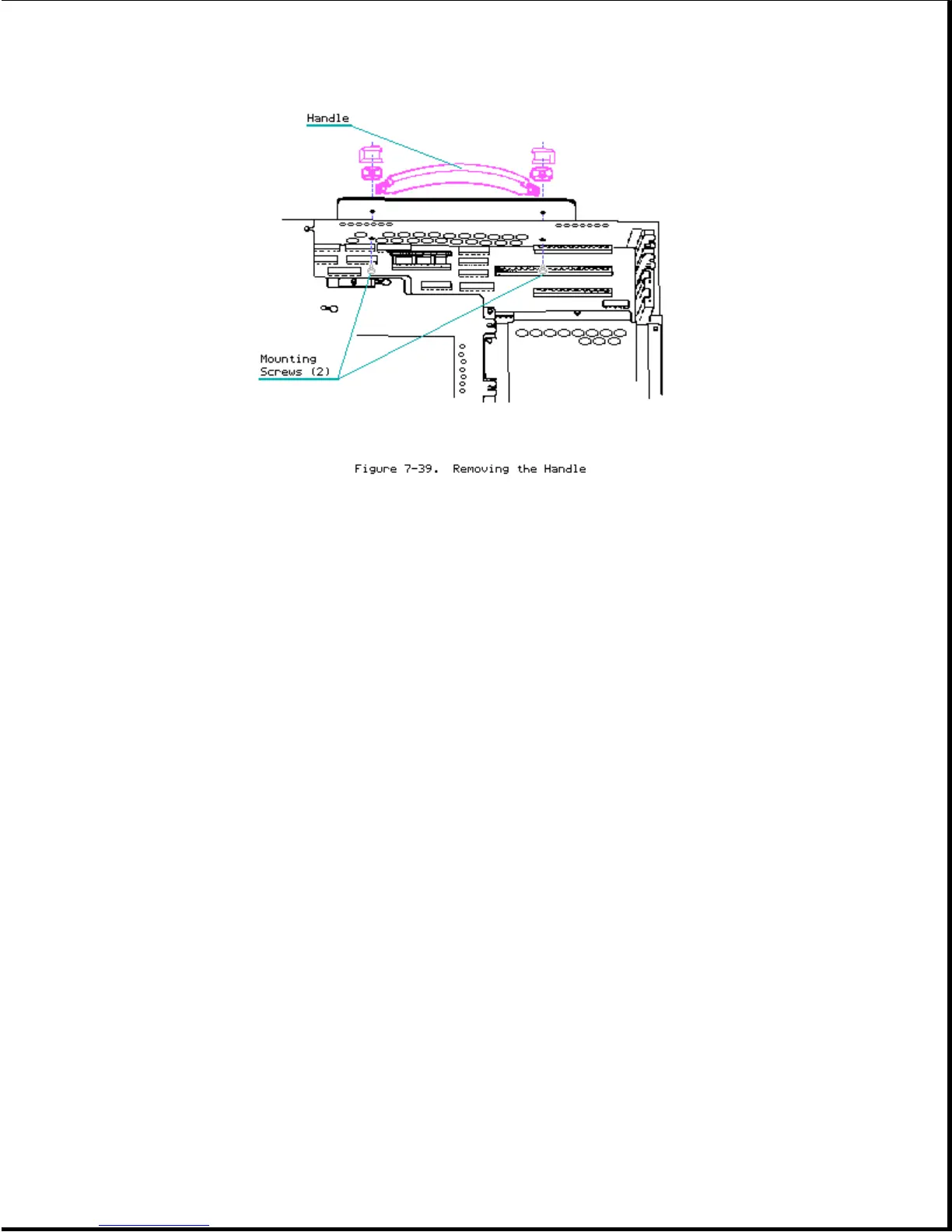

To replace the handle, reverse steps 1 through 4.
Chapter 7.18 System Board
There are two versions of the system board for the COMPAQ PORTABLE II:
version 1 (Assy No. 000318) and version 2 (Assy No. 000324). The two system
boards differ in shape, memory chip locations, and jumper locations
(Figures 7-40 and 7-41).
Functionally both versions are identical; however, the version 2 system board
contains three gate array devices that consolidate the functions of several
devices from the earlier version making a smaller system board possible.
