Compaq Portable II - Video Display Controller Board Jumper Settings

------------------------------------------------------------------------------

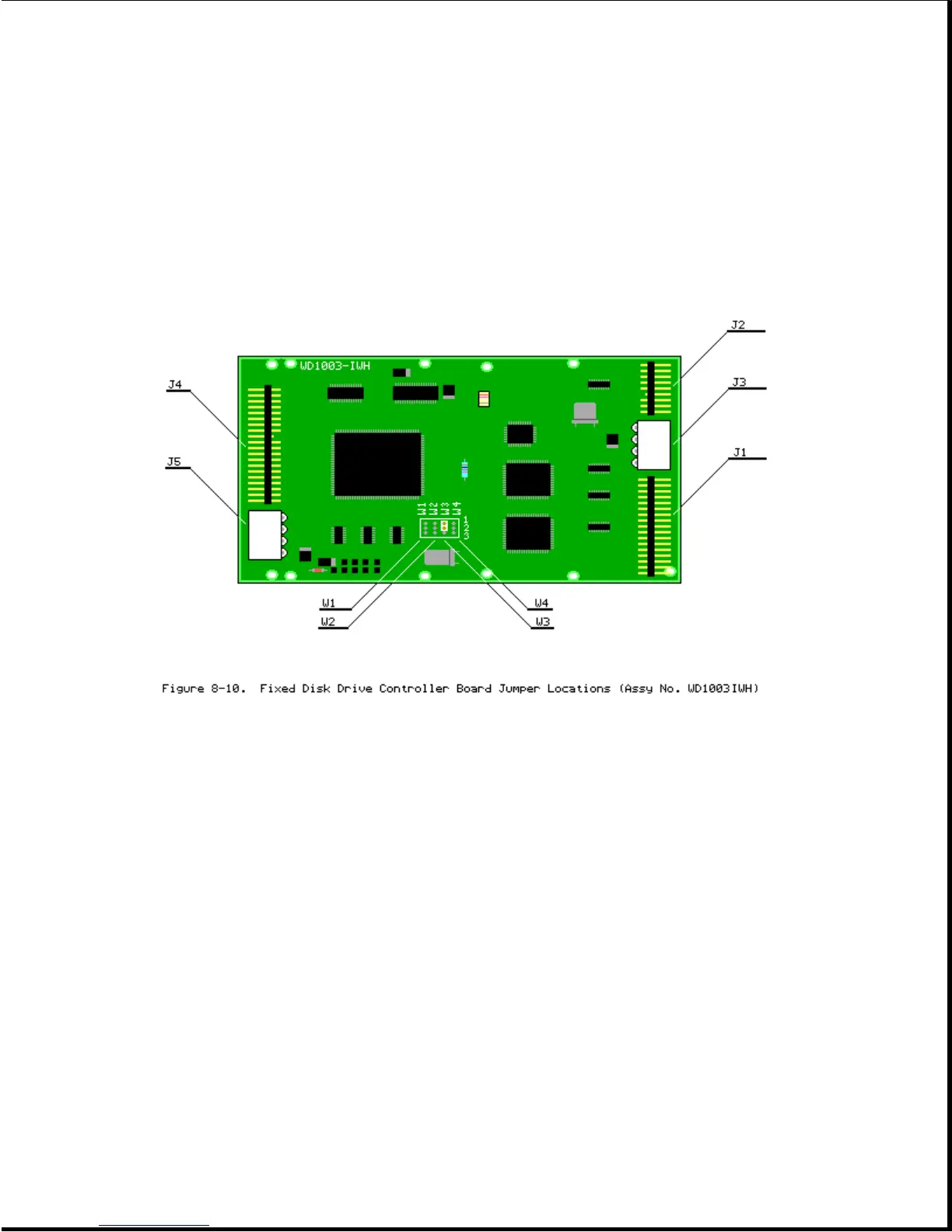

W1 Reserved
W2 Reserved
W3 1-2 20 Megabyte Fixed Disk Drive
2-3 10 Megabyte Fixed Disk Drive
W4 Reserved
==============================================================================
Chapter 8.6 Video Display Controller Board Jumper Settings
Figures 8-11 through 8-14 show the jumper locations on the Video Display
Controller Board. Refer to Tables 8-9 and 8-10 when setting the jumpers.
Table 8-9. Video Display Controller Board Switch and Jumper Settings
(Assy Nos. 000031, 000160, and 000345)
==============================================================================
J3 J5 Function
------------------------------------------------------------------------------
2-3 2-3 Enable RGBI and composite video - high scan
1-2 1-2 Disable RGBI and composite video - high scan
(default)
==============================================================================
Table 8-10. Video Display Controller Board Jumper Settings
(Assy No. 000525)
==============================================================================
Jumper
Location Function Jumper Setting
