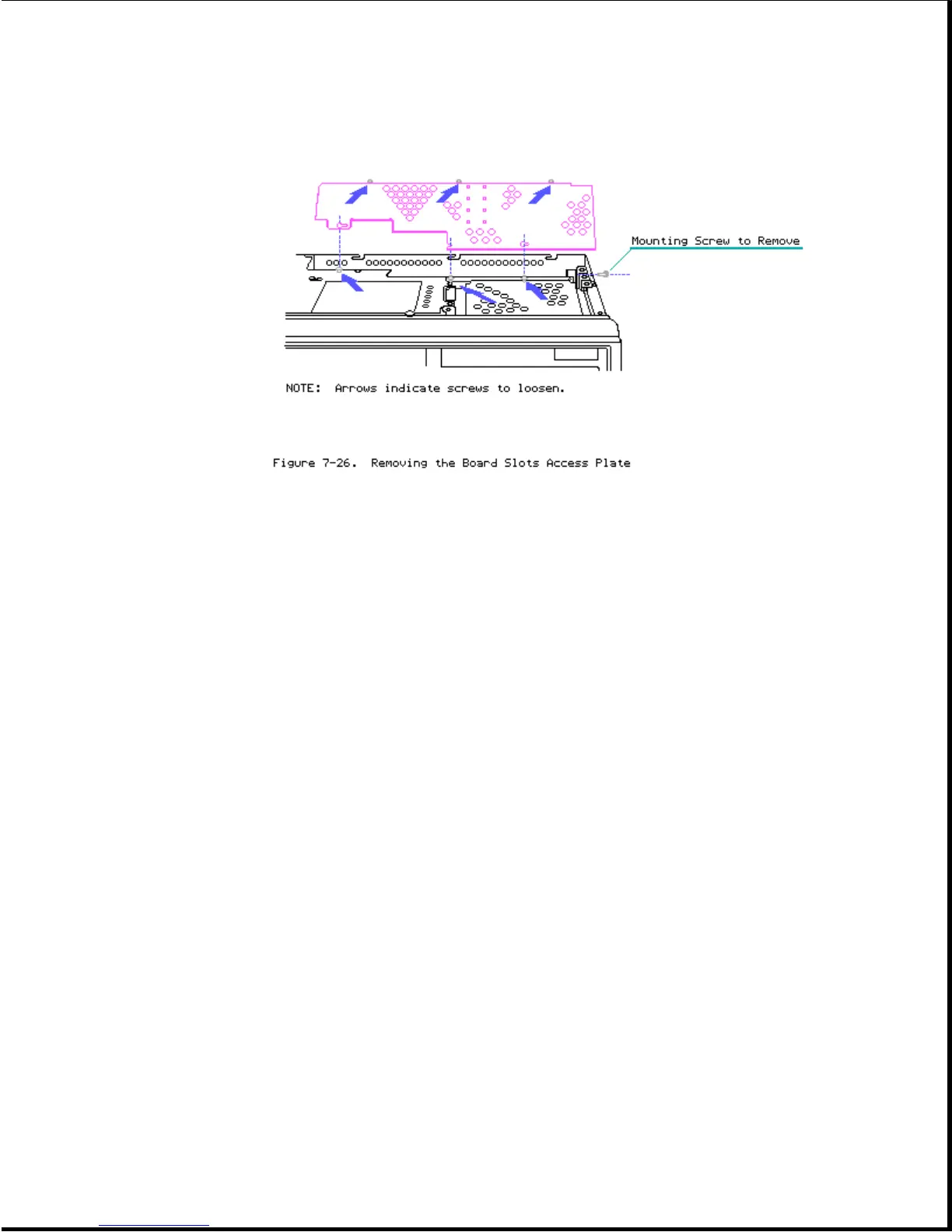

3. Gently slide the board slots access plate to the right of the computer and
lift it up and away from the system chassis.
To replace the board slots access plate, reverse steps 1 through 3.
Chapter 7.11 Mass Storage Device Access Plate
The mass storage device access plate is located at the front of the system
chassis and covers all installed mass storage devices.
To remove the mass storage device access plate, complete the following steps:
1. Remove the outer access cover (See Section 7.3).
NOTE: It is not necessary to remove the mass storage device access plate
before removing the mass storage device enclosure.
2. Using a Torx screwdriver, remove the eight mounting screws that secure the
mass storage device access plate to the system chassis and the mass
storage device enclosure (Figure 7-27).
