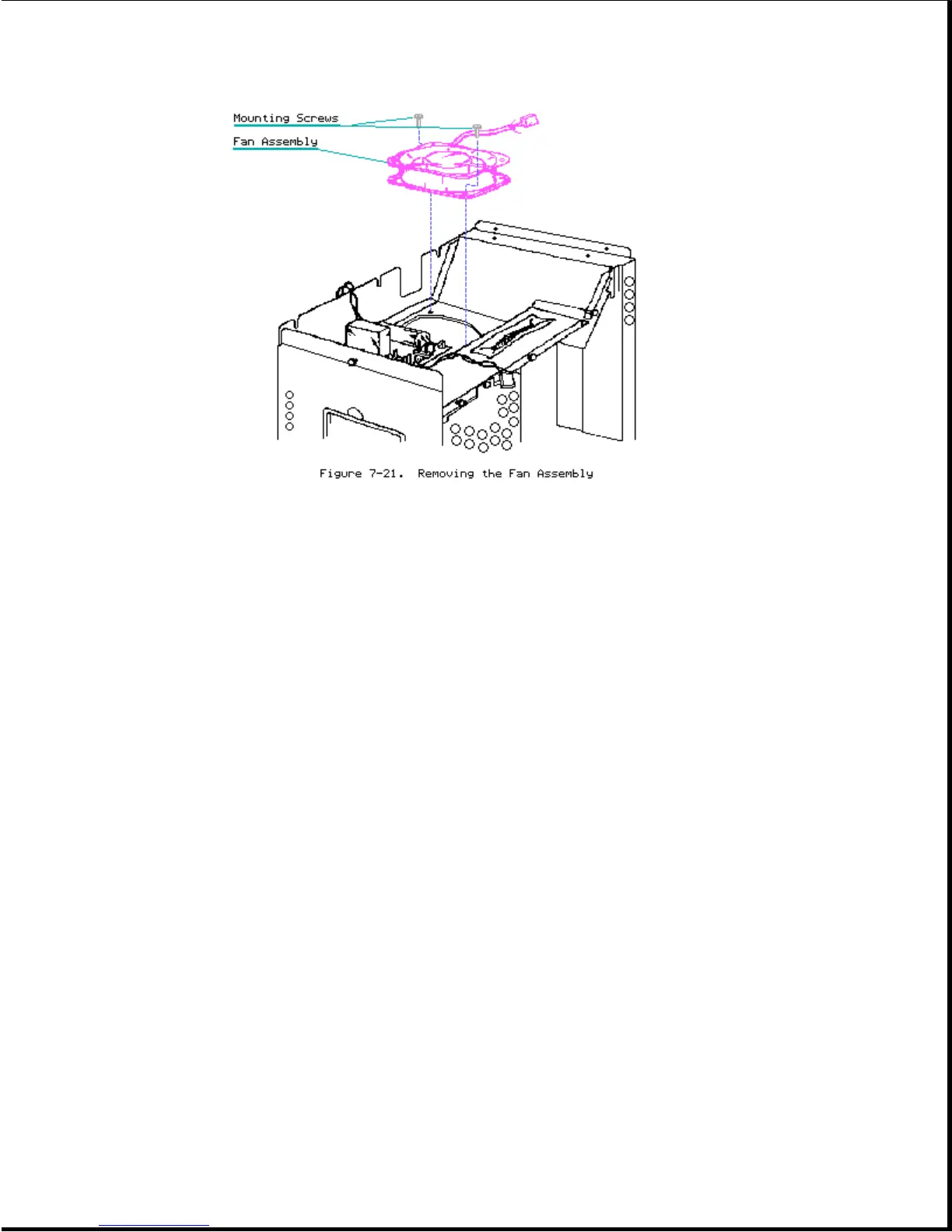

To
replace
the
fan
assembly,
reverse
steps
1
through
3.
Chapter 7.8 Automatic Power Switc
hing Board (APS)
1.
Remove
the
power
supply
subassembly
chassis
(see
Section
7.6).
NOTE:
Carefully
remove
all
three
connections
to
the
APS
board
when
removing
the
power
supply
chassis.
Refer
to
Figure
7-22
for
an
illustration
of
the
APS
board.
61
