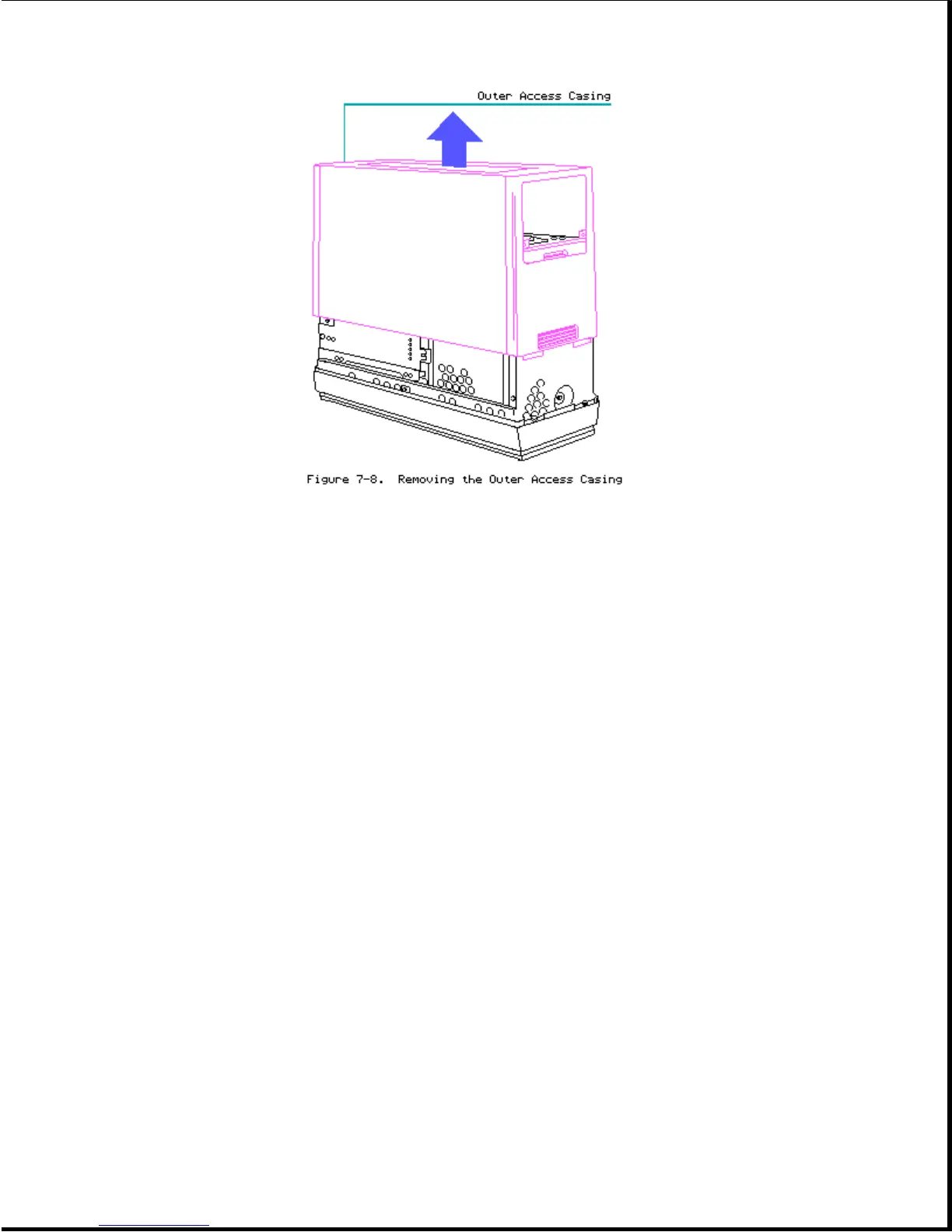

To replace the outer access casing, reverse steps 2 and 3.
Chapter 7.4 Keyboard Assembly
To remove the keyboard assembly, complete the following steps:
1. Remove the cable tray access plate (see Section 7.13).
2. Disconnect the keyboard cable connector from the J116 socket connector on
the system board (Figure 7-9).
