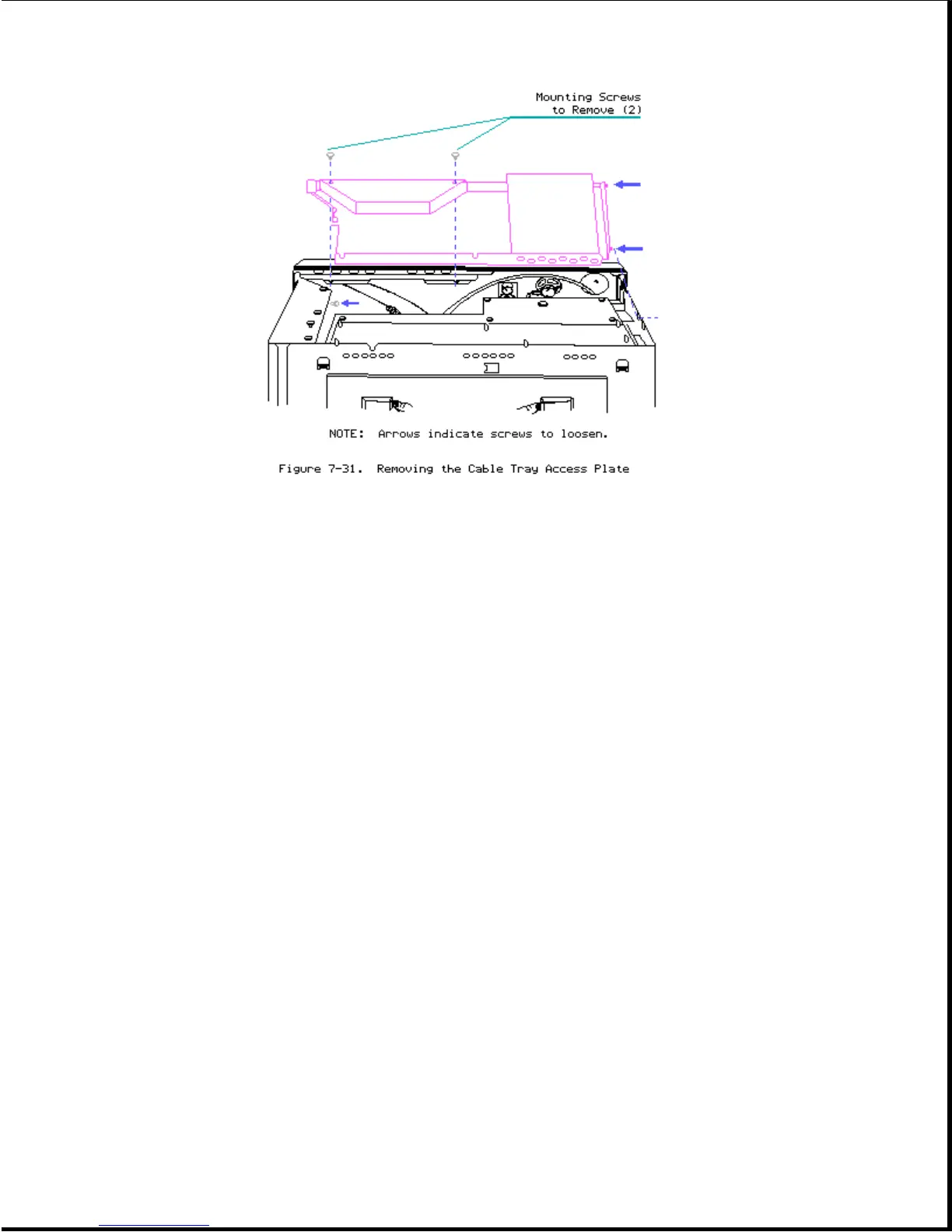

5. Carefully lift and remove the cable tray access plate from the system
chassis.
To replace the cable tray access plate, reverse steps 1 through 5.
Chapter 7.14 Multipurpose Controller Board
The Multipurpose Controller Board is located in slot J104 on the system board
(Figure 7-32). To remove the multipurpose controller board, complete the
following steps.
