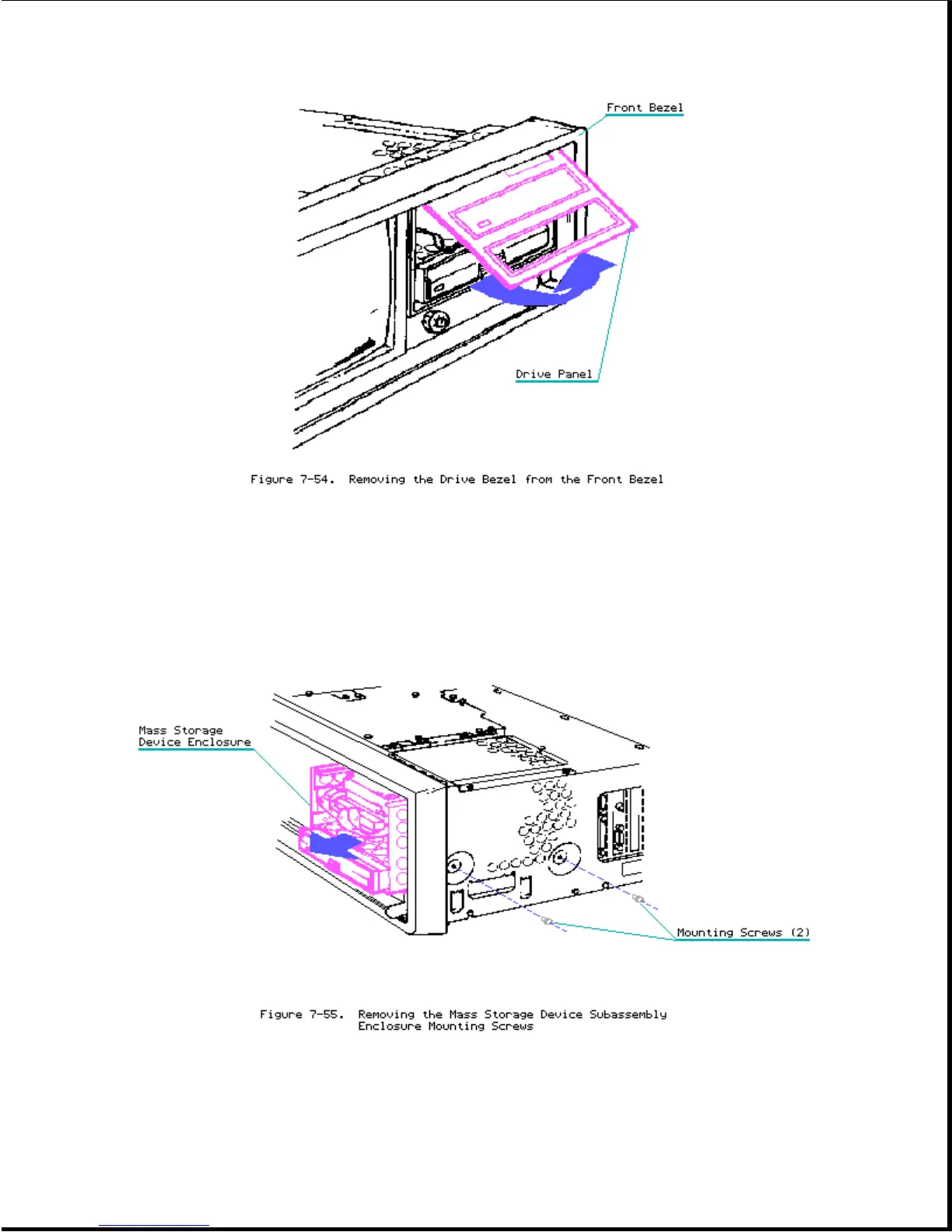

4. Using a Torx screwdriver, remove the two screws on the right side of the
system chassis and the four screws on the top of the mass storage device
enclosure. These screws secure the mass storage device subassembly
enclosure to the system chassis (Figure 7-55).
5. Slide the mass storage device subassembly enclosure forward a few inches
by reaching into the open system chassis area and pushing the enclosure
forward. This action will expose the mass storage power cables
(Figure 7-56).
