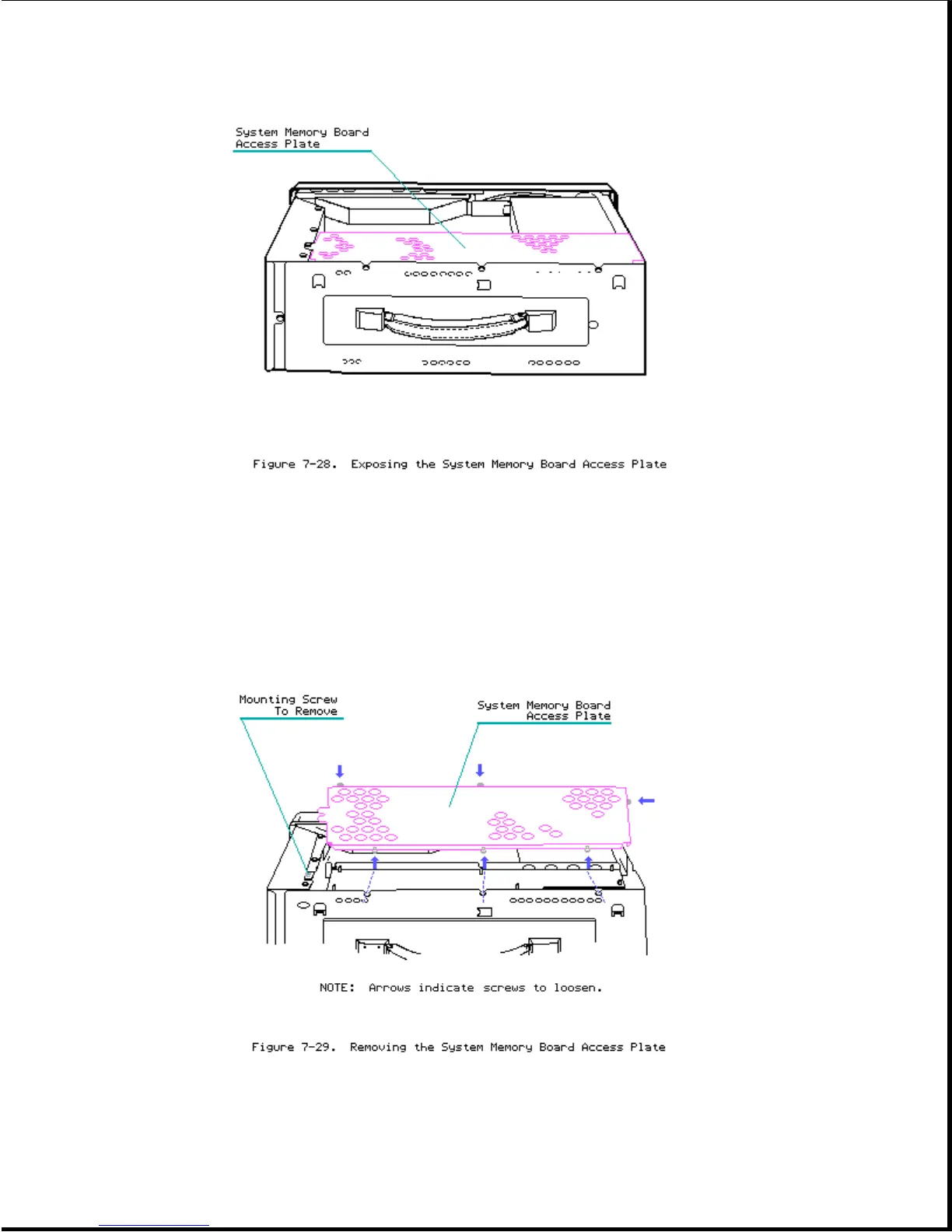

3. Using a Torx screwdriver, loosen (DO NOT REMOVE) the seven mounting screws
that secure the system memory board access plate to the system chassis.
Remove only the one mounting screw indicated in Figure 7-29.
4. Carefully lift and remove the system memory board access plate from the
system chassis (Figure 7-29).
To replace the system memory board access plate, reverse steps 1 through 4.
