1.
Remove
the
board
slots
access
plate
(see
Section
7.10).

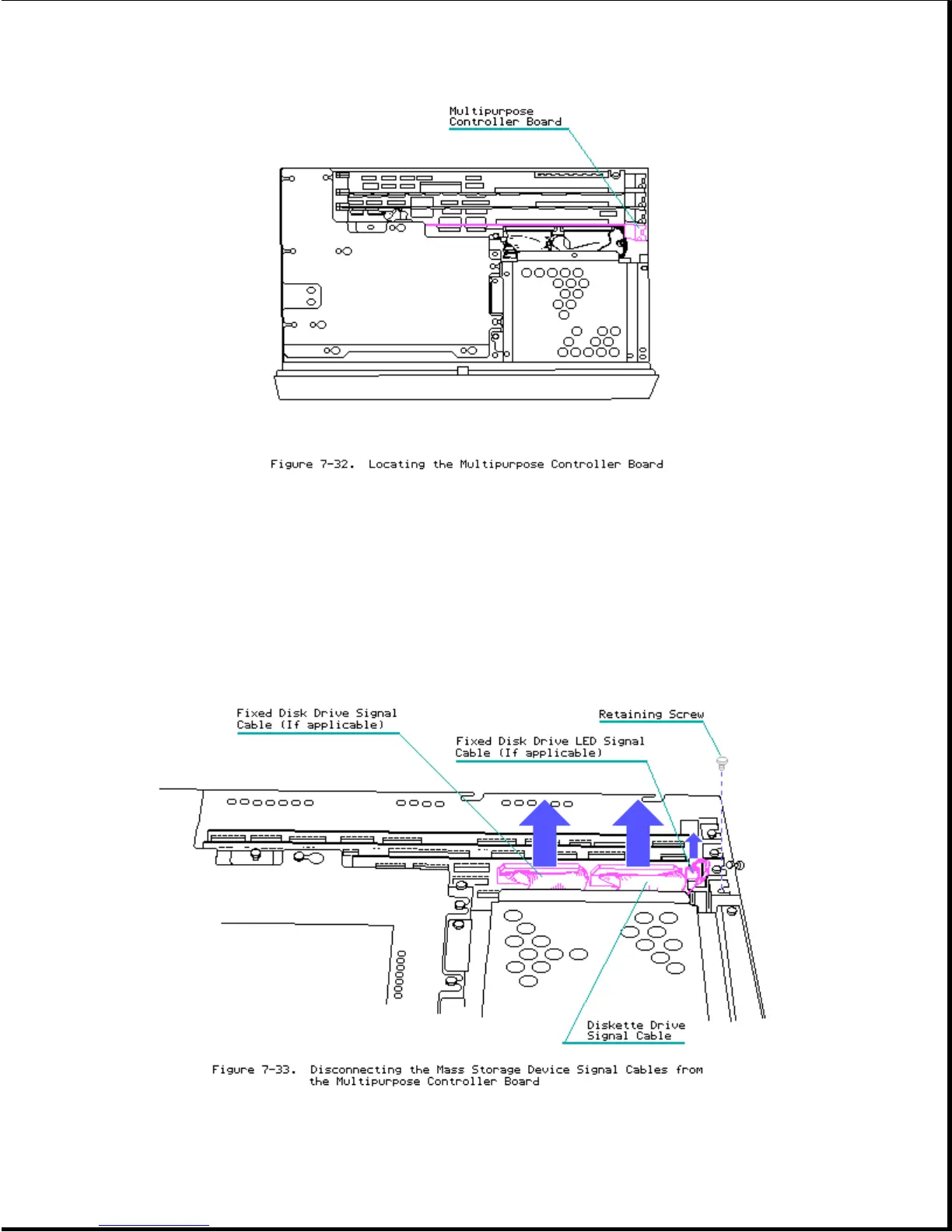

2.
Disconnect
the
mass
storage
device
signal
cable(s)
as
shown
in
Figure
7-33.
NOTE:
If
a
fixed
disk
drive
is
installed
in
the
system
chassis,
you
must
disconnect
two
signal
cables.
3.
Using
a
Torx
screwdriver,
remove
the
board
retaining
screw.
Carefully
70
