Table 8-3. 512/2048 Kbyte Memory Expansion Board Memory Configuration for
Jumper Settings
==============================================================================
Banks Installed Resulting Expansion Memory
------------------------------------------------------------------------------
Bank 1 512 Kbytes
Banks 1 and 2 1024 Kbytes
Banks 1,2 and 3 1536 Kbytes
Banks 1, 2, 3, and 4 2048 Kbytes
==============================================================================
Chapter 8.3 360 KByte Diskette Drive Switch Settings

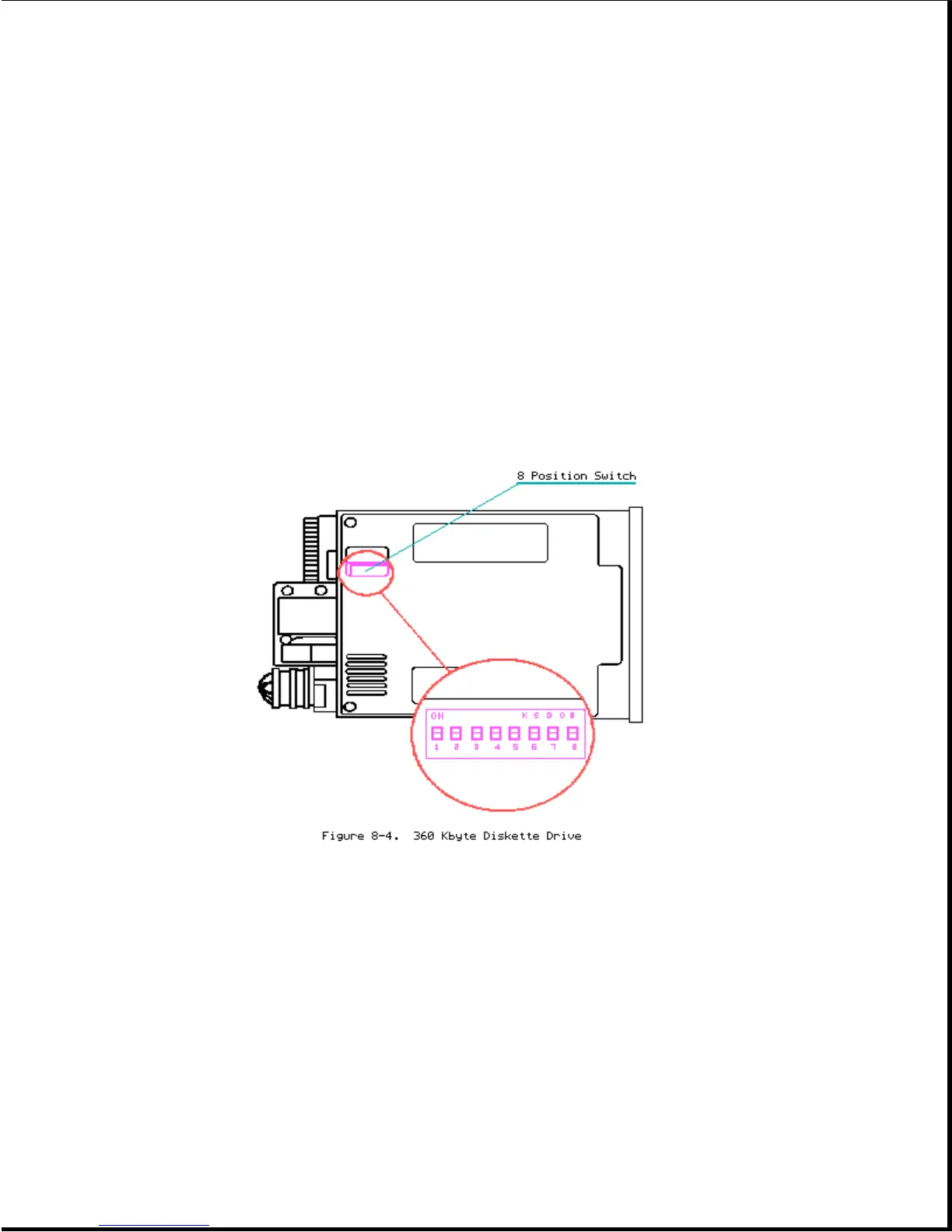

Figure 8-4 shows the COMPAQ PORTABLE II 360 Kbyte Diskette Drive. This
diskette drive contains an 8 position switch. Refer to Table 8-4 when
setting switch positions.
Table 8-4. 360 Kbyte Diskette Drive Switch Settings
==============================================================================
Switch Position Function Switch Setting
------------------------------------------------------------------------------
1 Reserved ON
2 Reserved OFF
3 Reserved ON
4 Reserved OFF
5 Reserved OFF
