Compaq Portable II User Manual

4. Remove the high voltage access plate (see Section 7.9).
5. Remove the front bezel (see Section 7.5)

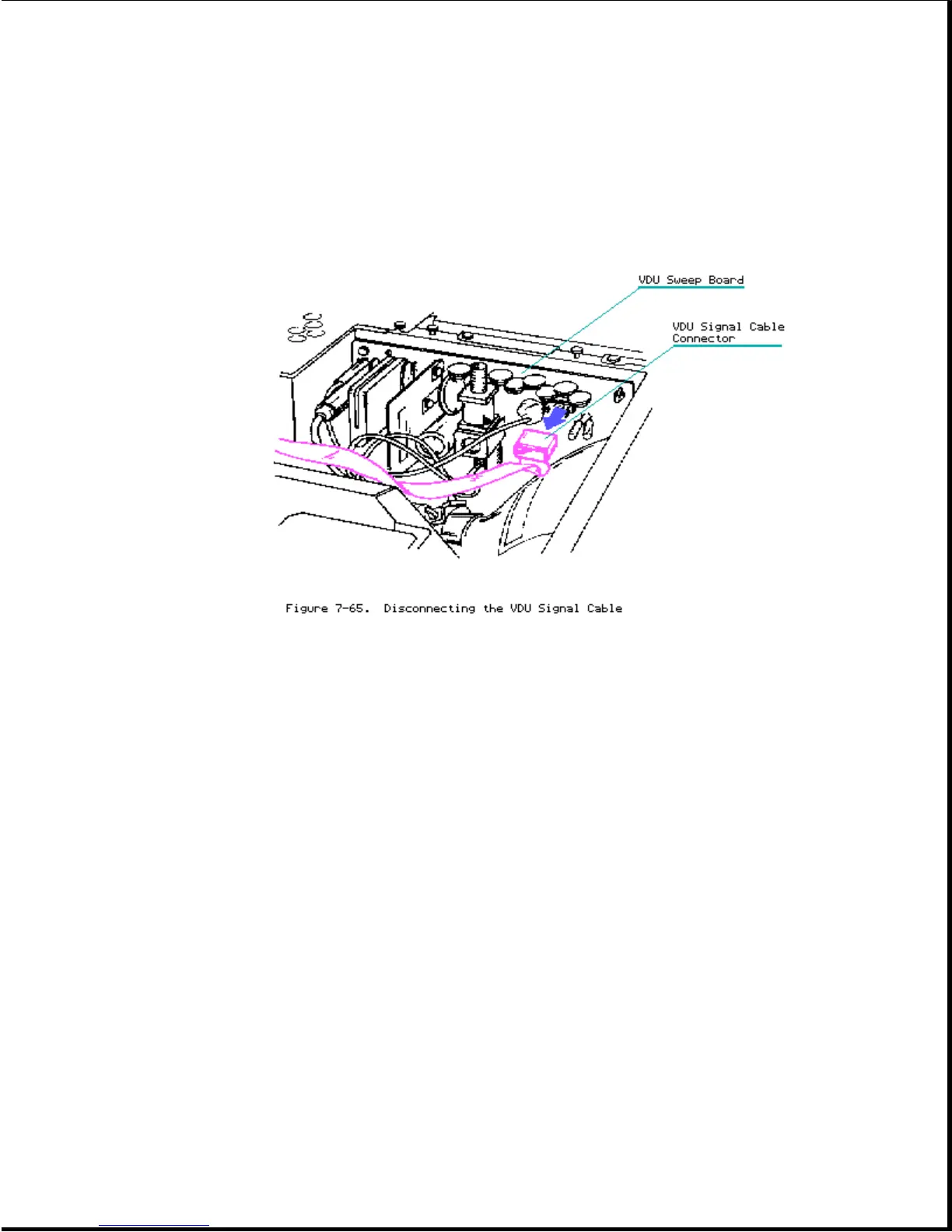

6. Disconnect the VDU signal cable from the VDU (Figure 7-65).
7. The VDU high voltage cable is secured to the system chassis by a
push mount with a snap connector at the end. Disconnect the VDU
high voltage cable by first unsnapping the push mount and then removing
the cable from its place inside the connector (Figure 7-66).

Compaq Portable II Specifications

General

Brand	Compaq
Model	Portable II
Category	Desktop
Language	English
