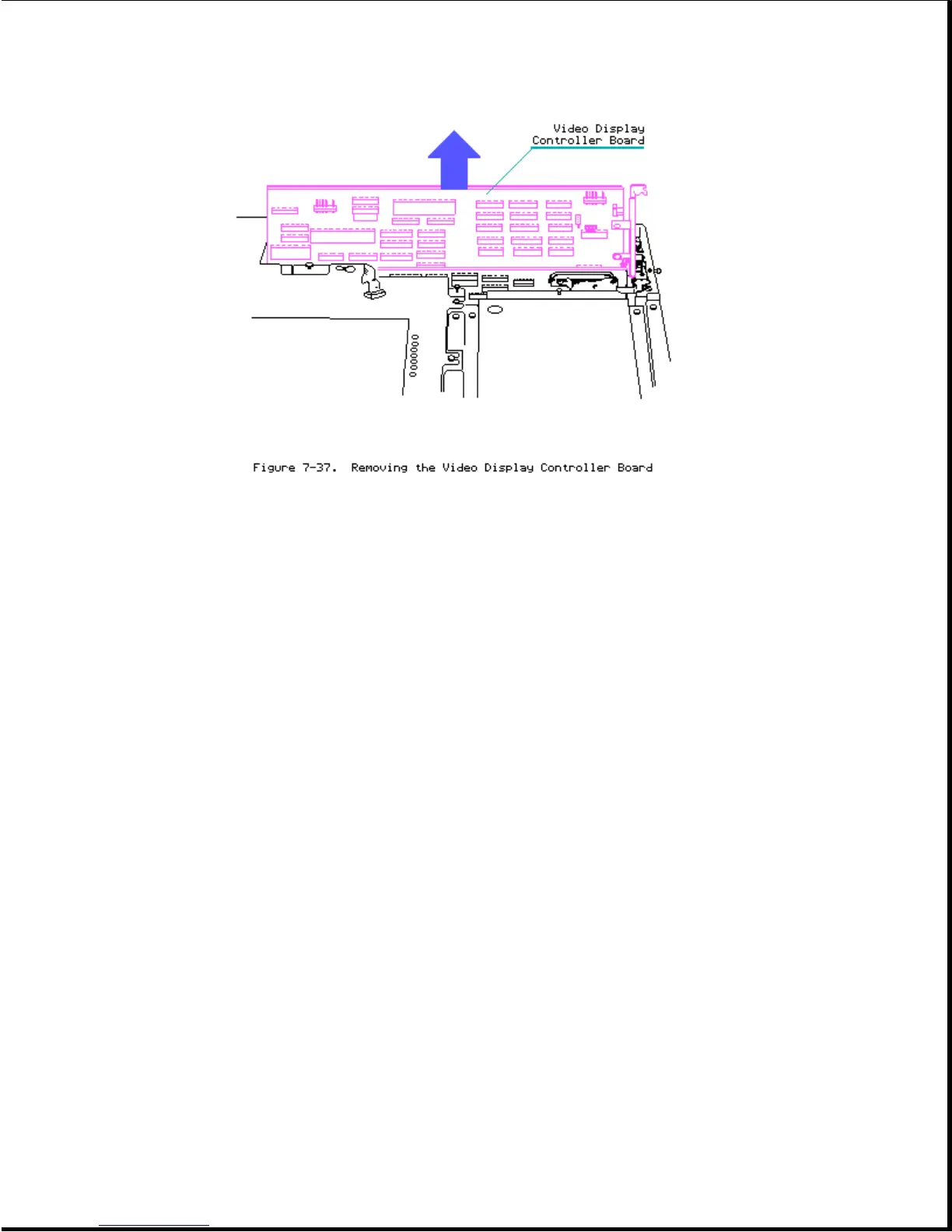

To replace the Video Display Controller Board, reverse steps 1 through 3.
Chapter 7.16 512/2048 KByte Memory Expansion Board
The COMPAQ PORTABLE II Personal Computer may contain up to two option boards.
Option boards are always installed in the back two slots of the system
chassis. To remove a COMPAQ 512/2048 Kbyte Memory Expansion Board or any
other option board installed in the computer, complete the following steps:
1. Remove the outer access casing (See Section 7.3).
2. Disconnect any signal cables connected to the board.
3. Remove the retaining screw that secures the board to the system chassis.
4. Carefully lift the board up and out of its connector on the system board
(Figure 7-38).
