To remove the Video Display Controller Board, complete the following steps:
1. Remove the board slots access plate (see Section 7.10).
2. Remove the retaining screw that secures the Video Display Controller

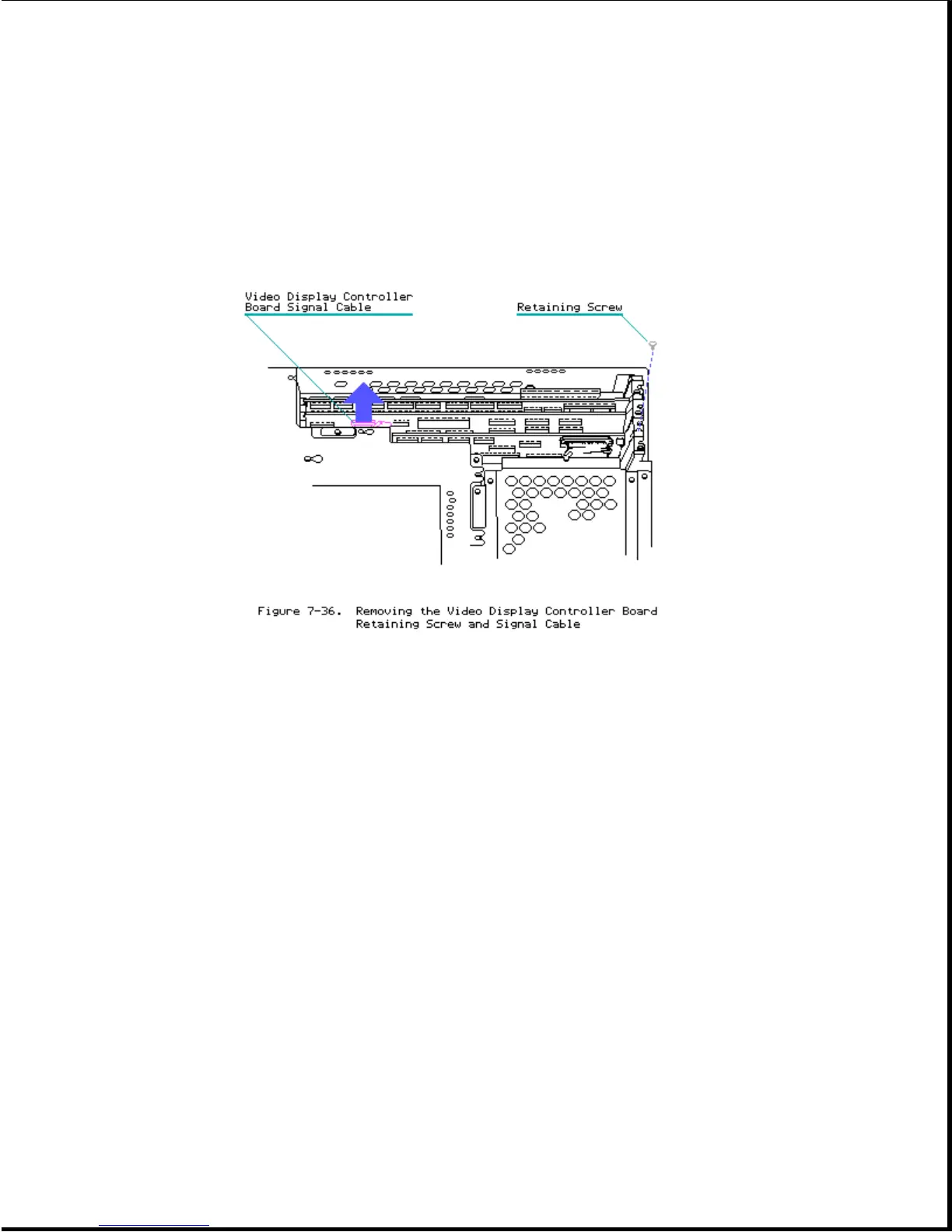

Board. Then disconnect the video display signal cable (Figure 7-36).
3. Carefully lift the board up and out of its J103 connector location on the
system board (Figure 7-37).
