2. Using a Torx screwdriver, loosen (DO NOT REMOVE) the 11 mounting screws
that secure the high voltage monitor access plate to the system chassis.

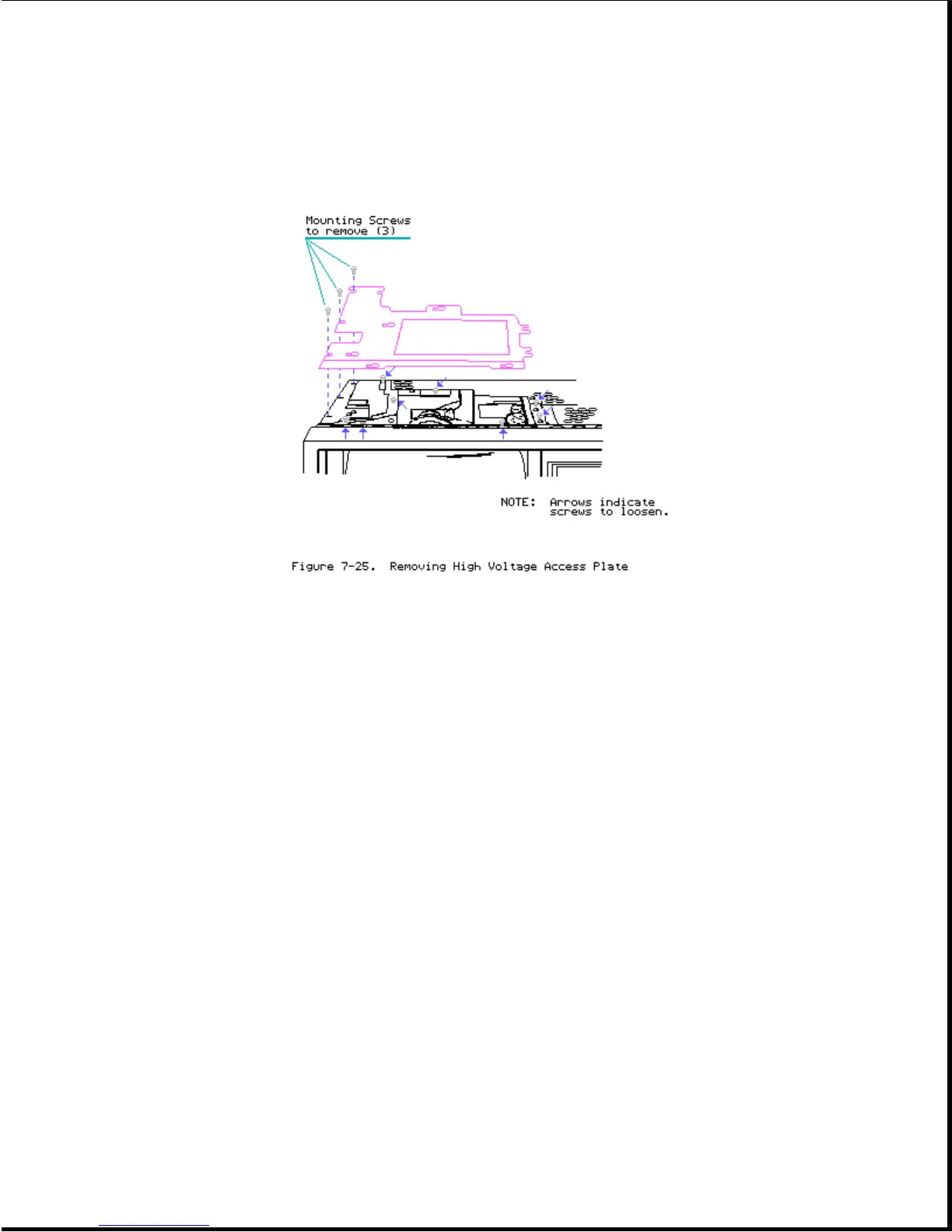

Remove only the three mounting screws indicated in Figure 7-25.
3. Gently slide the high voltage access plate towards the power supply
chassis assembly and lift it up and away from the system chassis.
To replace the high voltage access plate, reverse steps 1 through 3.
Chapter 7.10 Board Slots Access Plate
The board slots access plate is located at the rear of the computer and covers
all installed controller and option boards.
To remove the board slots access plate, complete the following steps:
1. Remove the outer access casing (see Section 7.3).
2. Using a Torx screwdriver, loosen (DO NOT REMOVE) the seven mounting screws
that secure the board slots access plate to the system chassis. Remove
only the one screw indicated in Figure 7-26.
