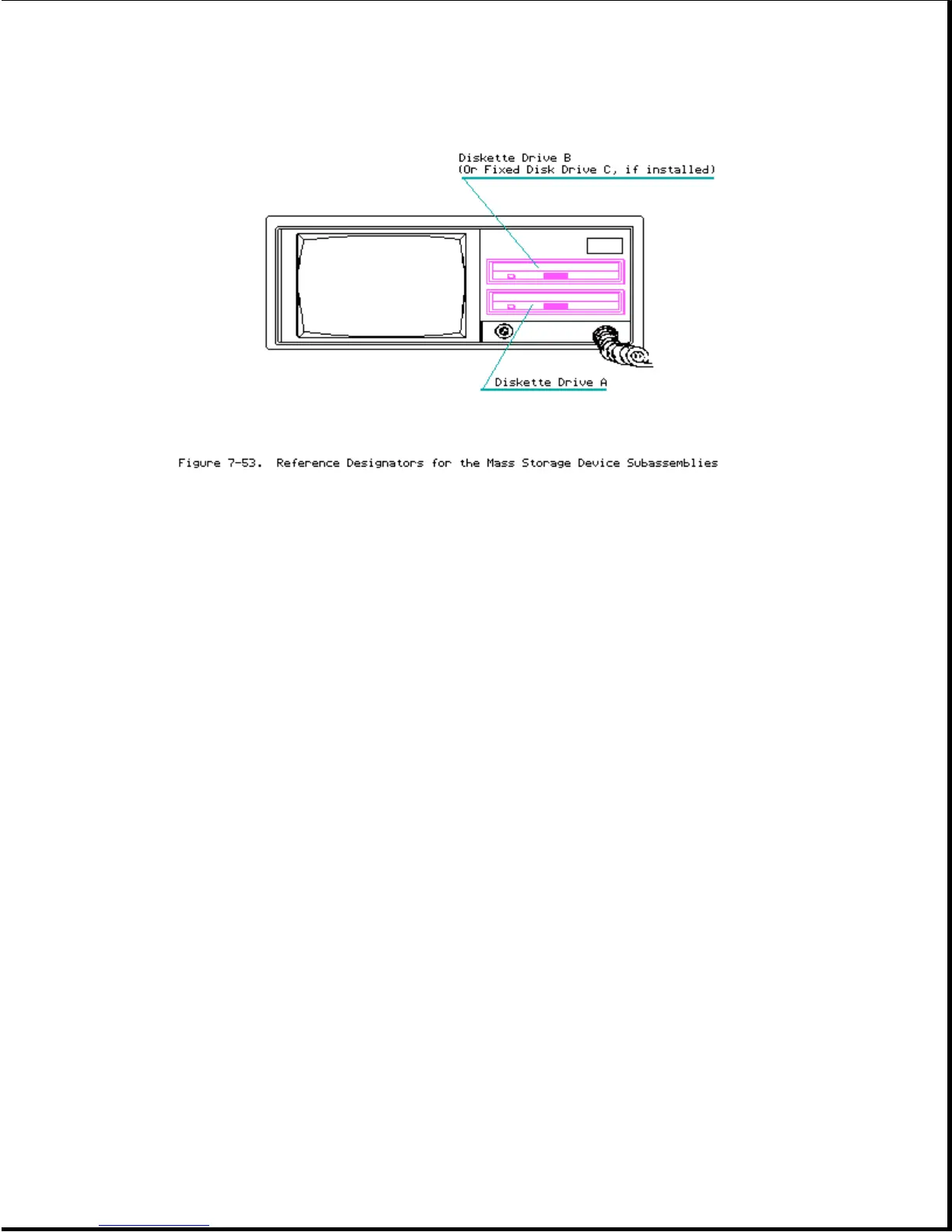

Mass Storage Device Subassembly Enclosure
To remove the mass storage device subassembly enclosure, complete the
following steps:
1. Remove the outer access casing (see Section 7.3).
2. Remove all installed controller and option boards (see
Sections 7.14 through 7.16).
3. Using a screwdriver, gently pry the drive bezel from the front bezel
(Figure 7-54). This exposes the installed mass storage devices.
