Chapter 8. Jumper Settings, Switch Settings, and Adjustments
8.1 System Board Jumper Settings

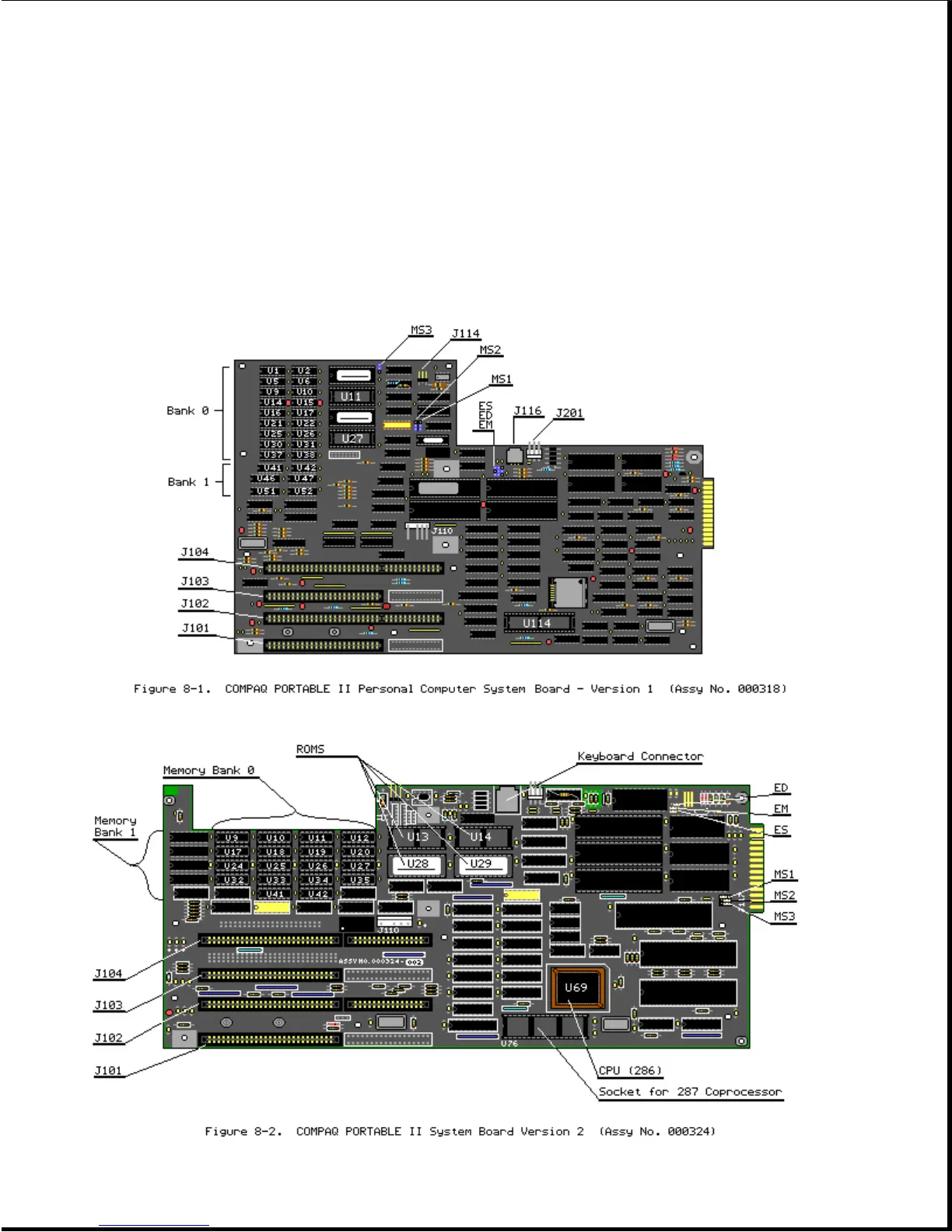

Figure 8-1 shows the jumper locations on the COMPAQ PORTABLE II Version 1
system board. Refer to Table 8-1 when setting the jumpers on this board.
Figure 8-2 shows the jumper locations on the COMPAQ PORTABLE II Version 2
system board. Refer to Table 8-1 when setting the jumpers on this board.
