Compaq Portable II User Manual

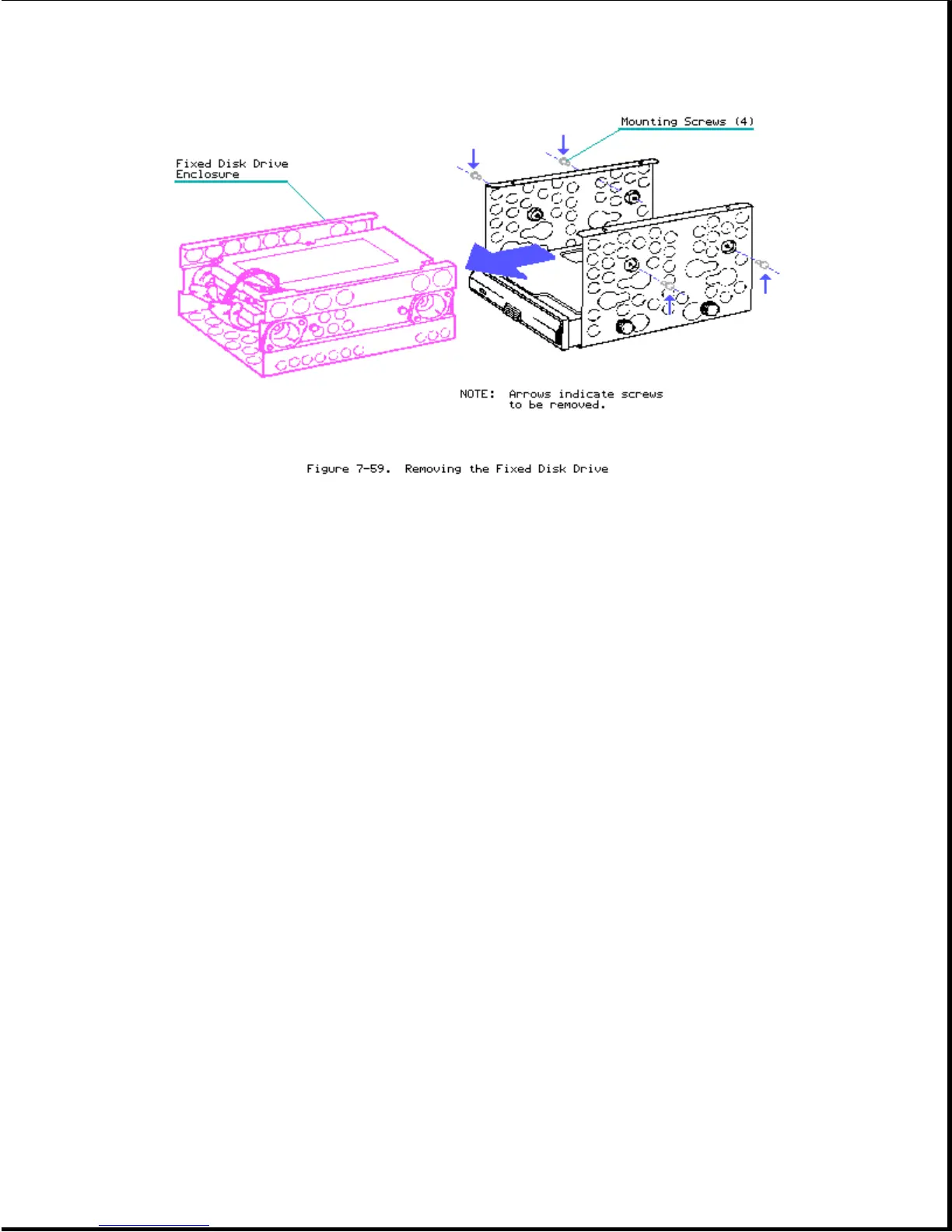

NOTE: The fixed disk drive is mounted above the diskette drive.
To replace the fixed disk drive assembly, reverse steps 1 and 2.
Diskette Drive
To remove the diskette drive assembly, complete the following steps:
1. Remove the mass storage device subassembly enclosure (see
Section 7.22).
2. Using a Torx screwdriver, remove the two shoulder bolts that secure the
diskette disk drive assembly from either side of the mass storage device
subassembly enclosure (Figure 7-60).
3. Slide the diskette drive assembly out of the mass storage device
subassembly enclosure (Figure 7-60).
