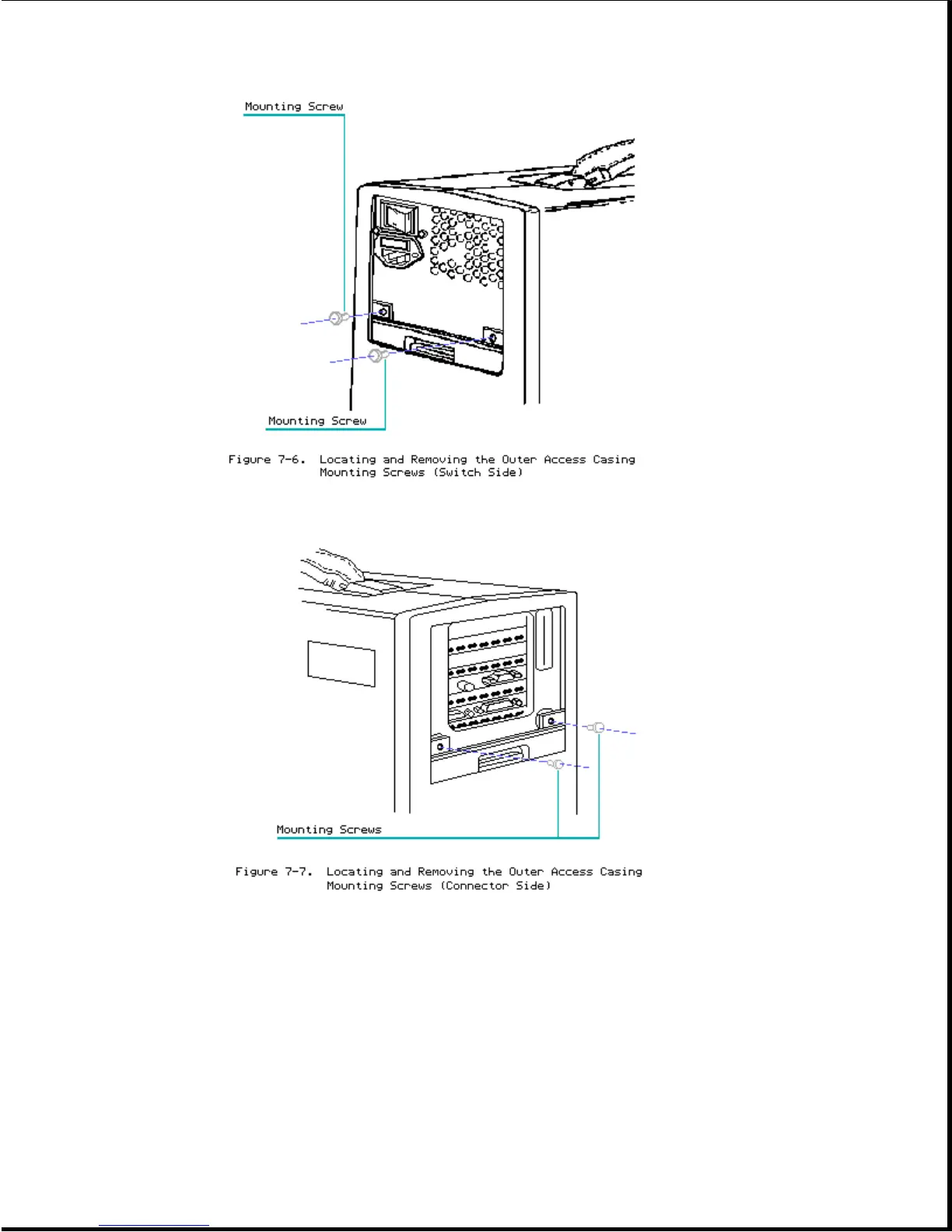

3. Remove the outer access casing by grasping it close to the AC power and
peripheral connector access panels and sliding the cover towards you.
Slide it completely off the system chassis (Figure 7-8) and set it aside.
NOTE: The outer access casing is flexible and will bend as needed.
