o
For
the
system
board
removal
and
replacement
procedure
refer
to
Section
7.18.
o
For
the
512/1536
Kbyte
System
Memory
Board
removal
and
replacement
procedure,
refer
to
Section
7.20.
NOTE:
The
RAM
and
ROM
chip
locations
on
the
system
boards
differ
from
those
on
the
memory
boards

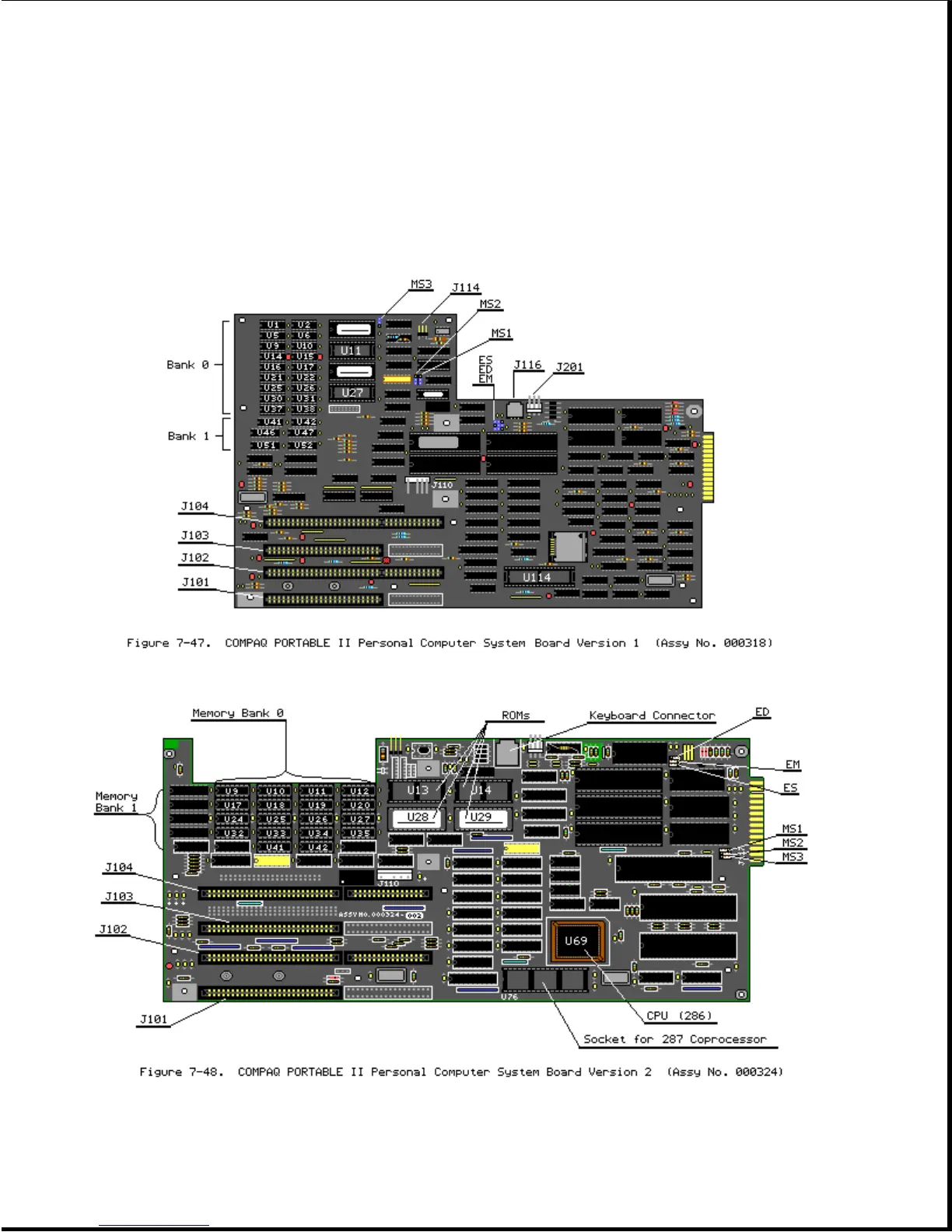

(See
Figures
7-47
through
7-50).
81
83
