Installation & Commissioning Manual 15Appendix D
5100607_CFD5000 T - CM2.2_Installation & Commissioning Manual_T_EN_2023_F
95

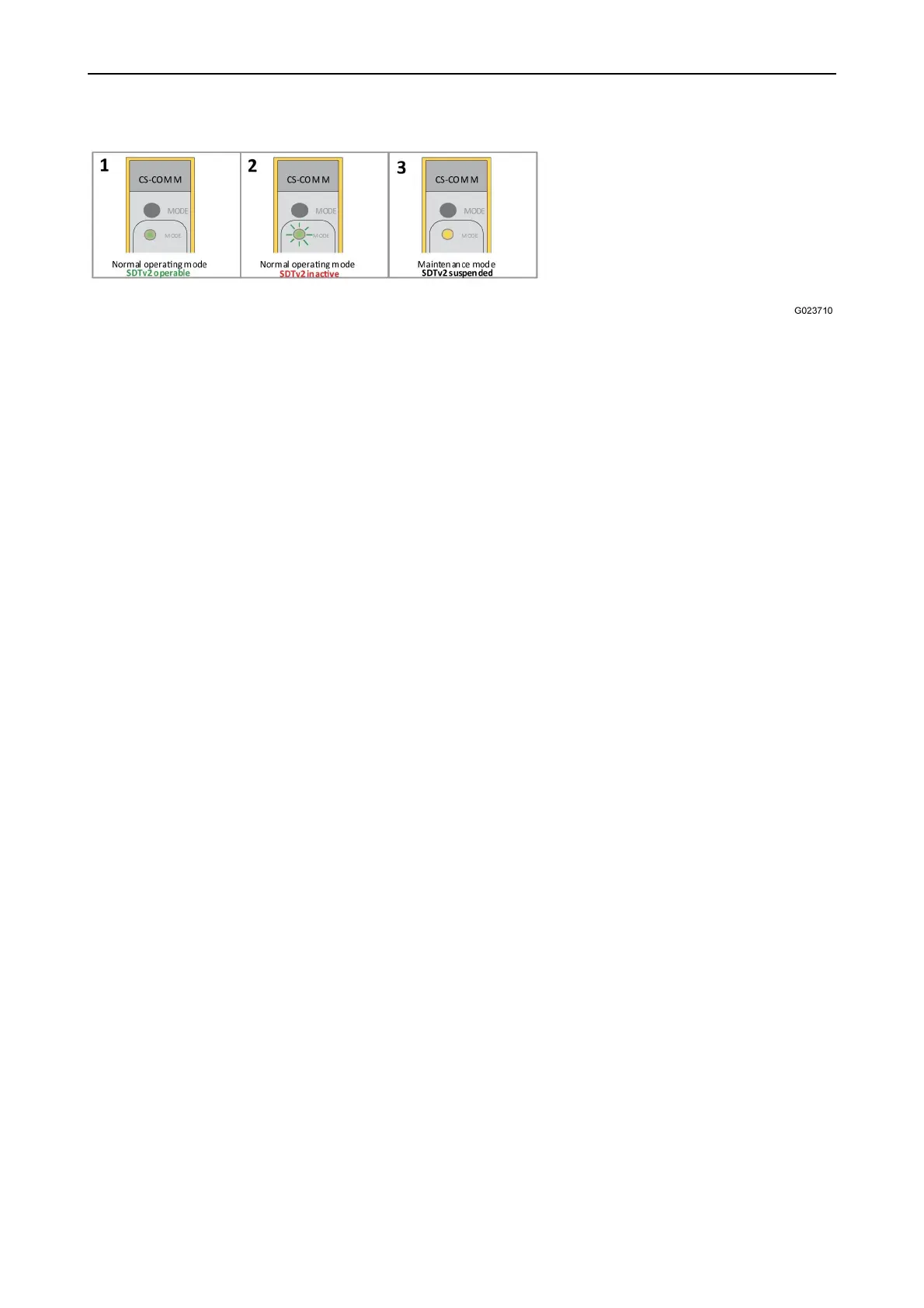

1. Green steady indication: Normal operating mode, SDTv2 fully functional.
2. Green flashing indication: Normal operating mode, SDTv2 inactive due to lacking Consist
ID. Normal behavior when no Consist ID provided yet.
3. Yellow steady indication: Maintenance mode, SDTv2 channel suspended during
maintenance mode.
