2.6 PCS Cabinet
2.6.1 PCS Cabinet Appearance

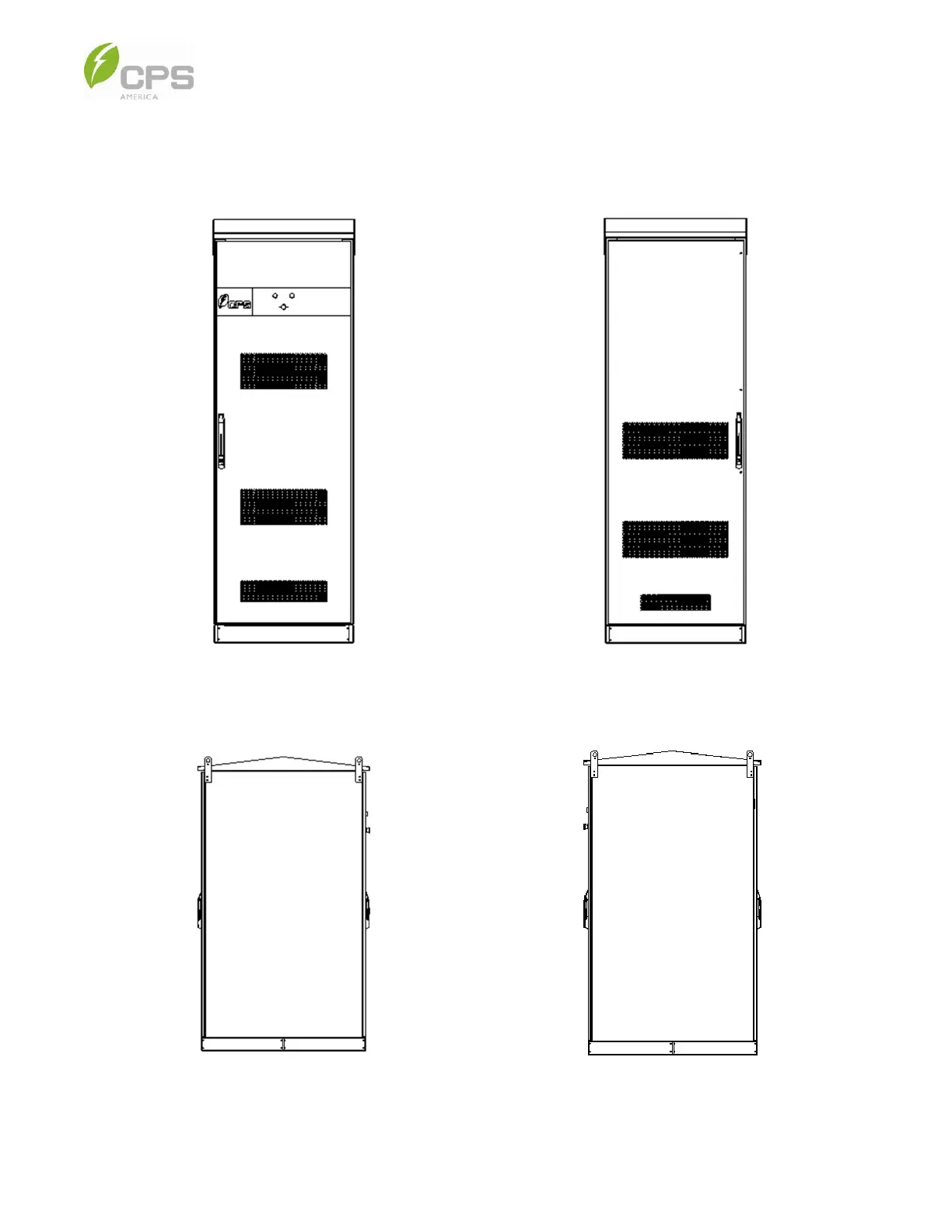

FRONT VIEW
The front of the cabinet is designed with a single door and an
air inlet for heat dissipation; the front door has equipment
status indicator lights and an emergency stop button.
REAR VIEW
The back of the cabinet is designed with a
single door and an air outlet for head dissipation.
LEFT VIEW
There are two lifting lugs on the left side of the cabinet.
RIGHT VIEW
There are two lifting lugs on the right side of the cabinet.
