4.4 Installation Space Requirements
The distance between the battery cabinets and surrounding objects must meet the following conditions:
The minimum allowable clearance between the front of the cabinets and surrounding objects is 78.7 in (2000 mm).
The minimum allowable clearance between the back of the cabinets and surrounding objects is 39.4 in (1000 mm).
The minimum allowable clearance between the sides of the PCS and battery cabinets is 3.9 in (100 mm).
The minimum allowable clearance between the sides of the cabinets and surrounding objects is 7.9 in (200 mm).

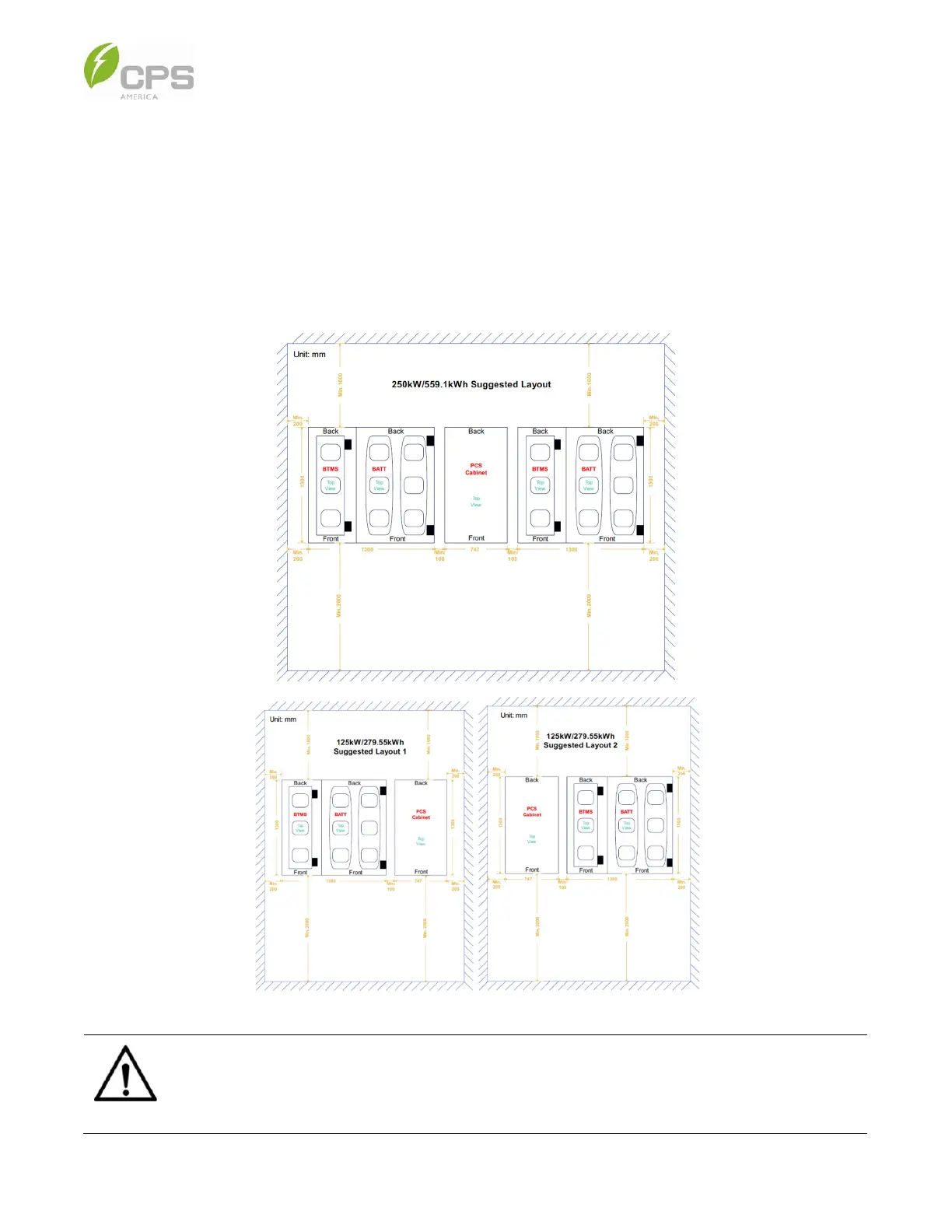

Figure 4-1 ESS Space Requirements
NOTICE:
The provided DC and communication cables for connection between the PCS cabinet and battery cabinet are
29.5 ft (9 m) long.
