2.6.3 PCS Cabinet Internal Components
The following figure shows the interior views of the PCS cabinet; the example shown is the 250 kW PCS cabinet. (See Table
2-2 below for details.)

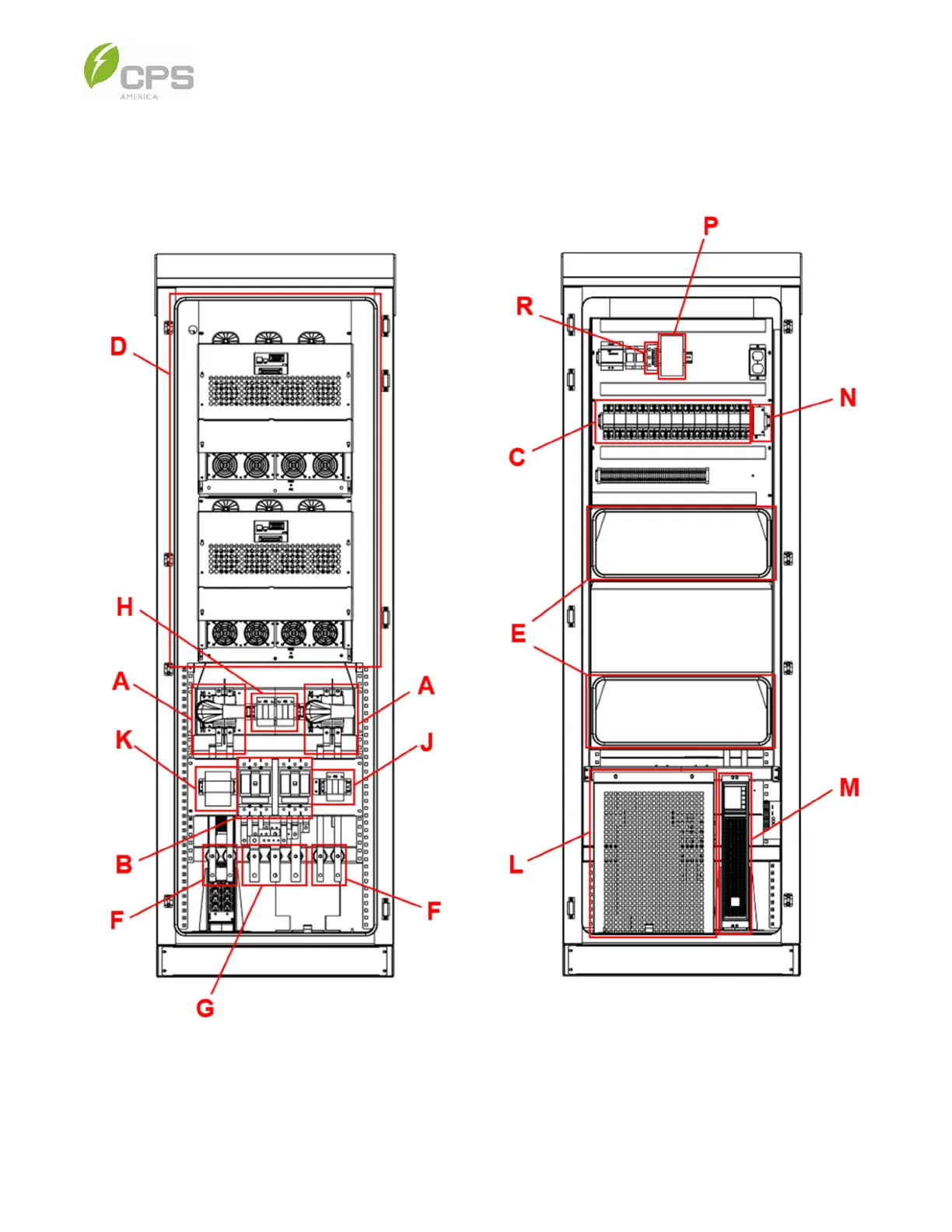

Figure 2-6 PCS Internal Cabinet Components
