CPS ES Series - Lifting Procedures

36

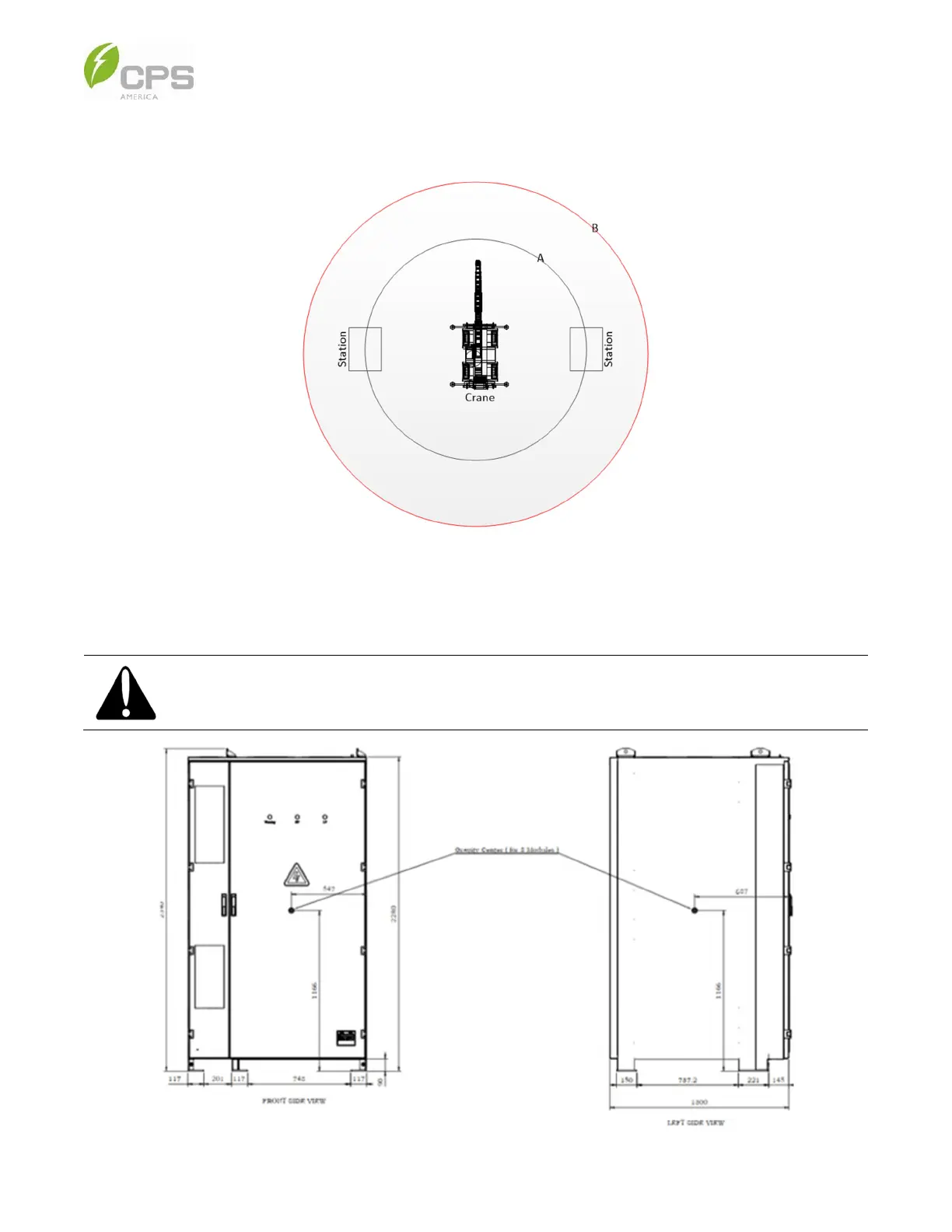

The following figure shows the crane lifting operation area for reference. The inner circle (A) indicates the working range of the
crane and the outer circle (B) indicates the safety clearance around the crane’s working range.
Figure 3-2 Crane Lifting Operational Area
3.2.2 Lifting Procedures
CAUTION:
The center of gravity of the battery rack MUST be kept stable during the lifting process.
