CPS ES Series - Lifting and Transportation; Lifting Precautions

35
3.2 Lifting and Transportation
3.2.1 Lifting Precautions
WARNING:
 Local safety regulations for crane and forklift operation MUST be followed.
 A safety clearance of at LEAST 32.8 ft (10 m) must be kept to avoid personnel from stranding under the
machinery and to avoid serious injury.
 Avoid lifting and/or transporting the cabinets during weather conditions such as heavy rain, fog, strong
winds, or sandstorms.

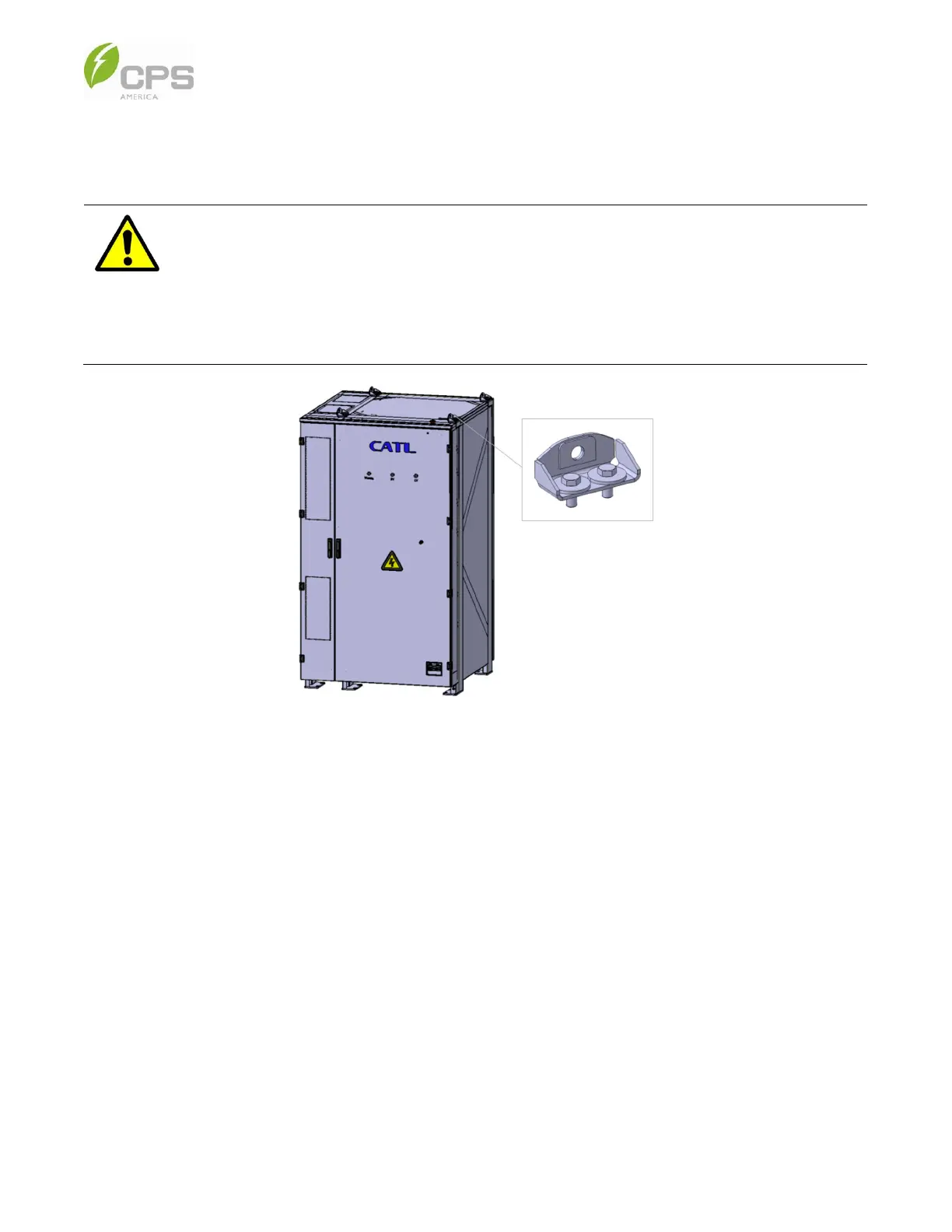

Figure 3-1 Lifting Points
When lifting the ESS, the following precautions must be taken:
 Select appropriate lifting equipment, rigging, and shackles according to the site conditions and mechanical equipment.
 Ensure the crane and rope meet the load-bearing requirements.
 Slings and shackles must be checked and in good condition before entering the site.
 Before lifting, reconfirm that the specifications and quality of the slings and shackles meet the requirements needed.
 See Figure 3-1 for the locations of the lifting points for the rack.
 When installing or removing a hoisting device, do NOT drag the rack; this can damage the rack.
 Transfer the rack to the designated location by means of forklift transfer or hoisting (the recommended method is
hoisting).
 The lifting lugs must be repainted if damaged after lifting.
 Note that the radius of the hole on the lifting lug is 0.04 in (11 mm).
