Link Active: Reports the status of the Ethernet connection (A true message indicates that
the Ethernet connection is active, while a false message indicates that the Ethernet
connection is inactive.)
l
MAC Address: The unique MAC (media access control) address for the Ethernet adapter
Select the + (plus)icon next to Control Subnet to display the following Control Subnet settings
(AV4, PRO4, and CP4Nonly):
l
Auto Network Addressing: Reports whether the network address for the Control Subnet is
configured automatically (true)or manually (false)
l
Network: The Control Subnet network address, shown only if a Control Subnet connection
is active
l
Subnet Mask: The Control Subnet mask address, shown only if an Ethernet connection is
active
l
Link Active: Reports the status of the Control Subnet connection (A true message
indicates that the Control Subnet connection is active, while a false message indicates
that the Control Subnet connection is inactive.)
l
Isolation Mode:Reports the status of the Control Subnet isolation mode (A true message
indicates that isolation mode is turned on, while a false message indicates that isolation
mode is turned off.)
l
MAC Address: The unique MAC (media access control) address for the Control Subnet
adapter
Program
Select Program to view the status of the program and slave mode settings for the control
system.

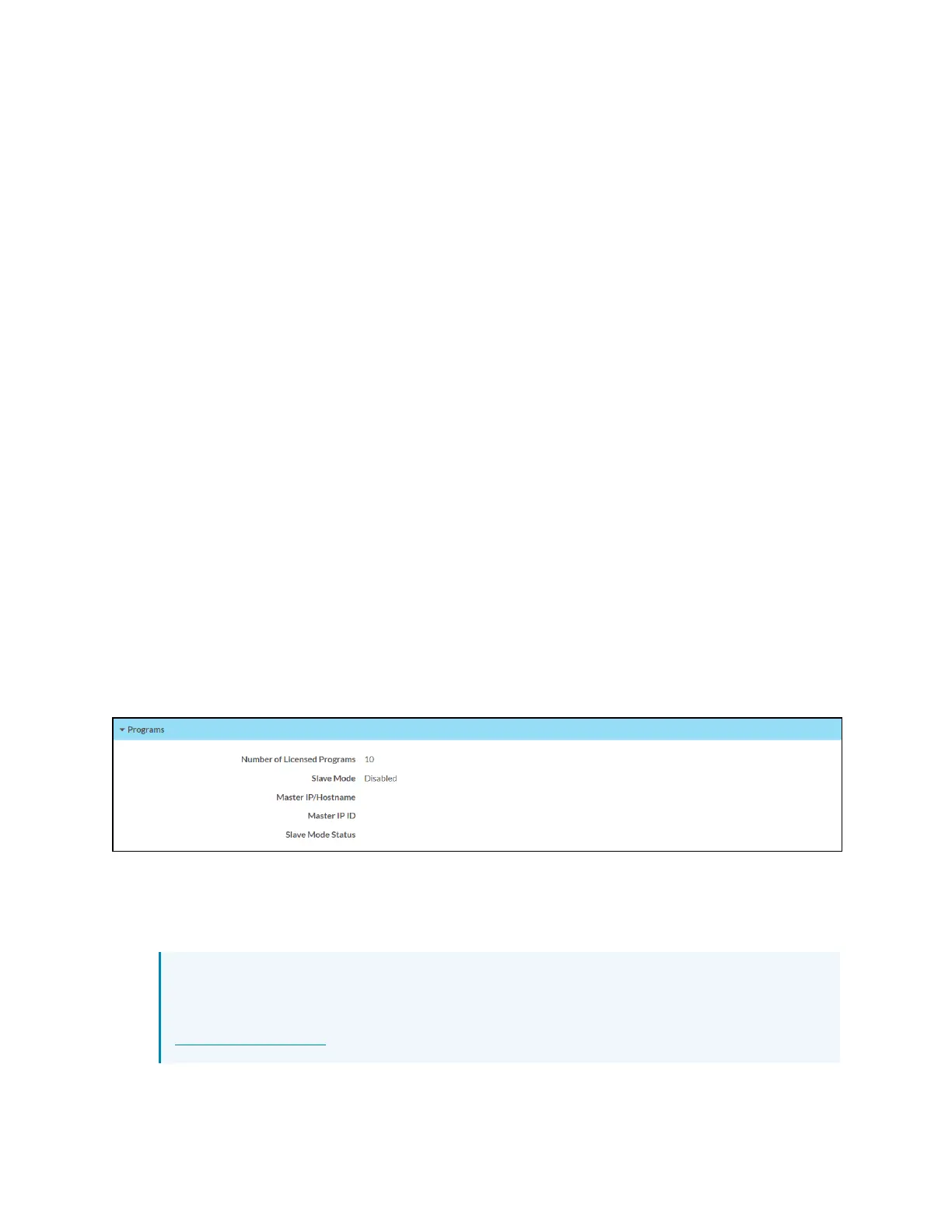

Status Tab - Program
The following Program information is displayed:
l
Number of Licensed Programs: The number of licensed programs supported by the control
system
NOTE:The MC4, MC4-I, and RMC4 are designed to run a single program out of the
box. The optional modular programming architecture (MPA) add-on allows these
control systems to run up to ten programs simultaneously via a
SW-RMC3-10PROGlicense.
