INPUTSINPUTS

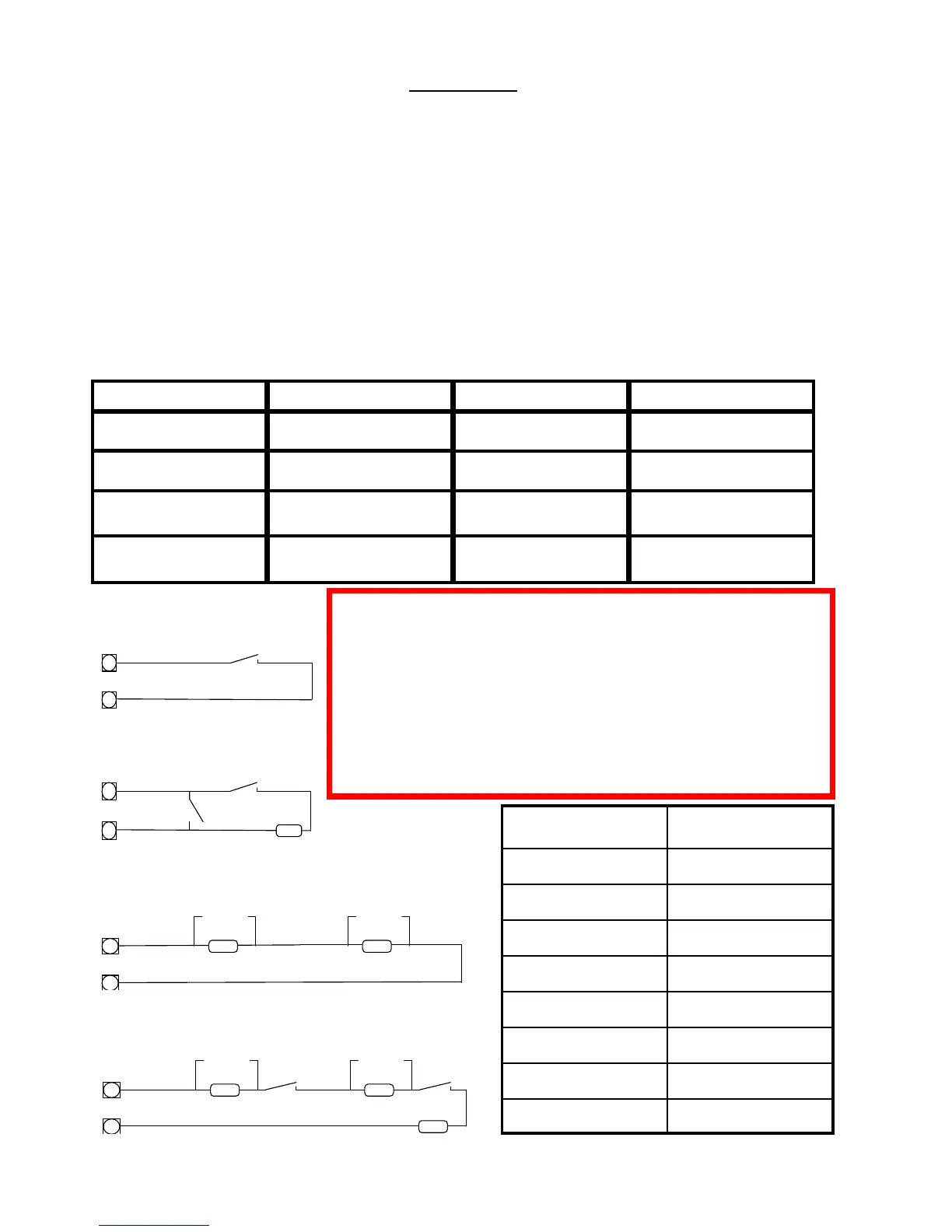

The PowerWave-8 has 5 separate programmable monitored analogue inputs,
4 x Programmable, multi-state detection inputs
1 x Programmable tamper input ( with optional Key-switch functions)
Each input must be terminated with the appropriate value or combination of end-of-line resistors,
even if the input is unused.
ZONE INPUTS - Each of the 4 zone inputs can be assigned one of the following configuration options;
1 Short circuit input No-End-of-Line.
2 Single-End-of-Line zone with no tamper (4 zones).
3 8 Zone Double-End-of-Line (EOL) No Tamper.
4 Double-End-of-Line zones with open/short circuit tamper per input (8 zones) .
The following table shows end-of-line resistor configurations.
n/c or n/o
4k7
Alarm Contact
n/c or n/o
8k2
Tamper
(4) 8 Zones with 8 tampers
(2) 4 Zones EOL, no tamper
n/c
n/o
2k2
(1) 4 Zones, N/C
n/c
Zone Types Low Zone Resistor Hi Zone Resistor Tamper End-Of-Line
N / A (Short Circuit) Type 1 (4 Zones)
LED’s 1-4 OFF, 5-8 OFF
N / A N / A
Type 2 (4 Zones)
LED’s 1-4 ON, 5-8 OFF
2k2
( Red, Red, Red, Gold )
None None
Type 3 (8 Zones)
LED’s 1-4 OFF, 5-8 ON
4k7
( Yellow, Violet, Red, Gold )
8k2
( Grey, Red, Red, Gold )
N / A
Type 1 (8 Zones)
LED’s 1-4 ON, 5-8 ON
4k7
( Yellow, Violet, Red, Gold )
8k2
( Grey, Red, Red, Gold )
2k2
( Red, Red, Red, Gold )
(3) 8 Zones no tamper
Alarm Contact
n/c or n/o
4k7
Alarm Contact
n/c or n/o
8k2
LED at Address 130
ÈÈ
Zone Relationship
ÈÈ
LED #1 Zone 1 Short or EOL
LED #2 Zone 2 Short or EOL
LED #3 Zone 3 Short or EOL
LED #4 Zone 4 Short or EOL
LED #5 Zone 5 Enabled
LED #6 Zone 6 Enabled
LED #7 Zone 7 Enabled
LED #8 Zone 8 Enabled
NOTE:
In all cases where a 4K7 (for a low zone) & 8K2
(for a high zone) EOL Resistor is used
(EXCEPT 2K2 Tamper resistors), the EOL
Resistor MUST be connected ACROSS (in
Parallel to) the alarm contact (detector relay)
and NOT in series with it.
