Page 8
PowerWavePowerWave--8 KEYPADS8 KEYPADS
When the PowerWave-8 is displaying codes and address values in program mode it may be necessary to display
the 9 and 0 digits. As there are no Zone indicators for 0 and 9 the "A" and "B" indicators are used.
i.e. When displaying values in programming mode
"A" = 0 and "B" = 9

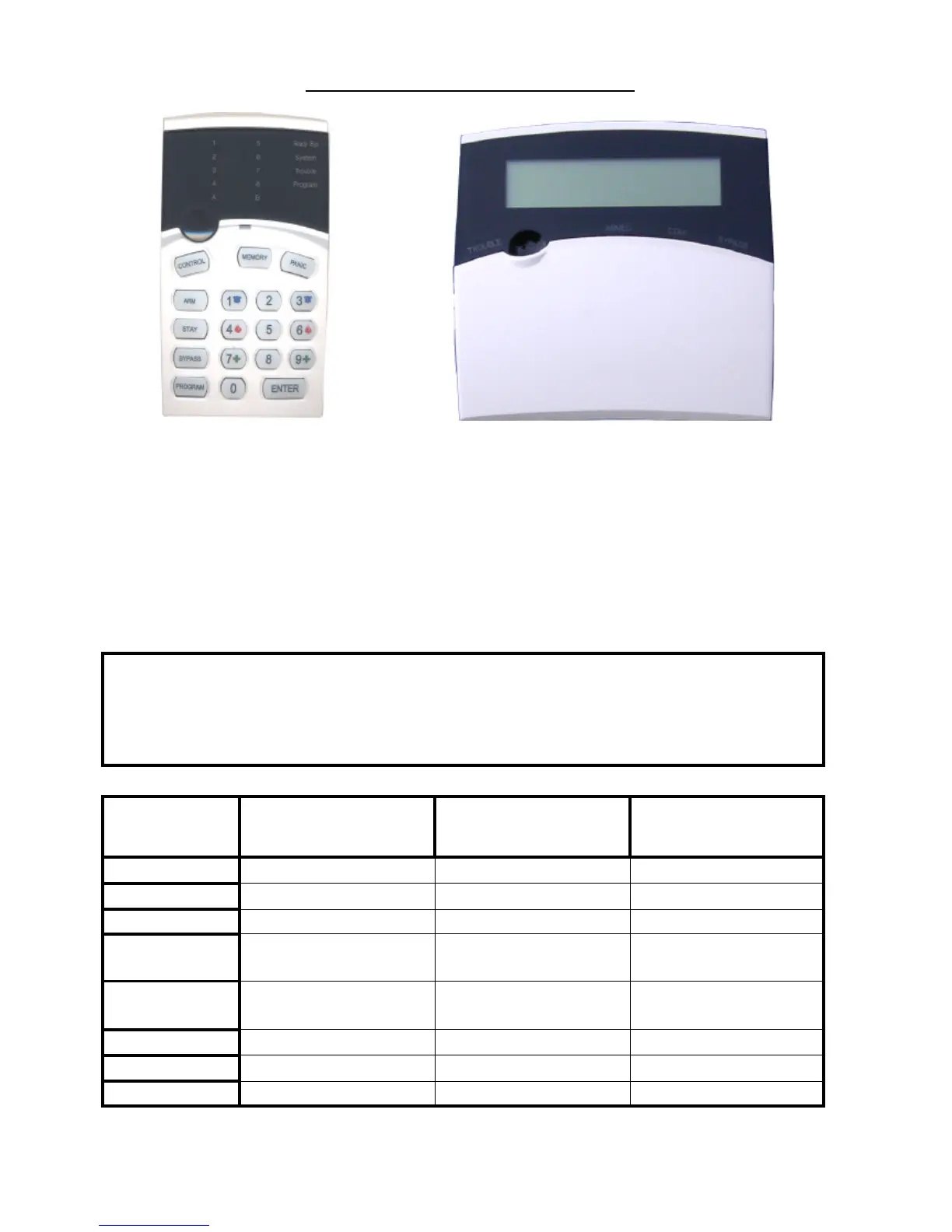

PowerWave-16 LED Keypad
LIGHT\INDICATION
ää ââ
OFF ON STEADY FLASHING
READY\BYPASS
Zone Unsealed All Zones Sealed A Zone is Bypassed
SYSTEM
Normal System Alarm Reset New System Alarm
TROUBLE
Normal Trouble Alarm Active New Trouble Alarm
PROGRAM
Normal Master Code Program Mode Installer Program Mode or
Control Function Active
READY\BYPASS
& PROGRAM
-
Bypass Mode Active
(Zones can be Bypassed)
-
ZONES 1-8
Zone Secure Zone Violated Zone in Alarm
Armed A
Partition A Disarmed Partition A Armed Partition A Stay Mode
Armed B
Partition B Disarmed Partition B Armed Partition B Stay Mode
PowerWave-16 LCD Keypad
