Fuses and bulbs

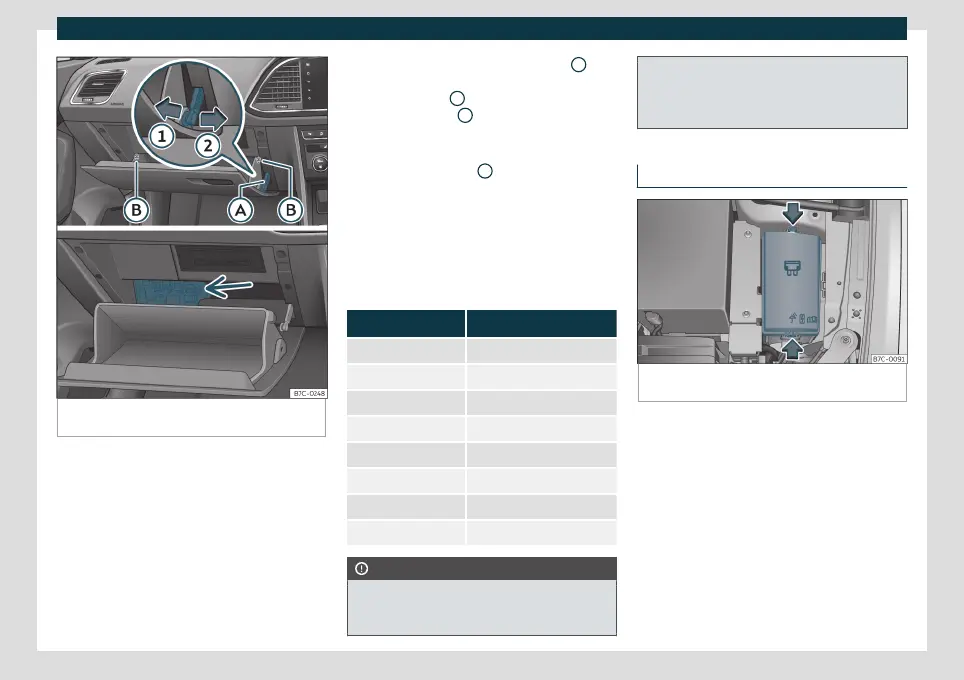

Fig. 46
Glove box (right hand drive): fuse box ac-
cess.
Opening and closing the fuse box situated
below the dash panel (left-hand drive)
●
Open: fold the cover down
›››
Fig. 45 .
●
Close: push back the cover it in until it
clicks into place.
Fuses behind the glove compartment
(right-hand steering wheel)
●
Open the glove compartment and, if nec-
essary, empty it.
●
Undo the opening limiter
›››
Fig. 46
A
in
two steps: first, unlock the limiter by pulling
back on it (arrow
1
) and then move it gently
to the right (arrow
2
). Remove the guide
when the cover is in the normal opening po-
sition (30°).
●
Free the side pivots
B
to release the cover
to its second opening position (60°).
●
Follow the same procedure in reverse or-
der to return the glove compartment to its
normal position.
Identifying fuses below below the dash-
board by colours
Colour Amp rating
Light brown 5
Brown 7.5
Red 10
Blue 15
Yellow 20
White or transparent 25
Green 30
Orange 40
CAUTION
●
Always carefully remove the fuse box
covers and refit them correctly to avoid
problems with your vehicle.
●
Protect the fuse boxes when open to
avoid the entry of dust or humidity. Dirt and
humidity inside fuse boxes can cause dam-
age to the electrical system.
Fuses in the engine compartment
Fig. 47
In the engine compartment: fuse box cov-
er.
To open the engine compartment fuse box
●
Open the bonnet
›››
page 287 .
●
Press the locking tabs to release the fuse
box cover
›››
Fig. 47 .
●
Then lift the cover out.
●
To fit the cover, place it on the fuse box.
Push the locking tabs down until they click
audibly into place.
57
