DAELIM S2 250

9-5
A.C GENERATOR/STARTER CLUTCH
STATOR INSTALLATION

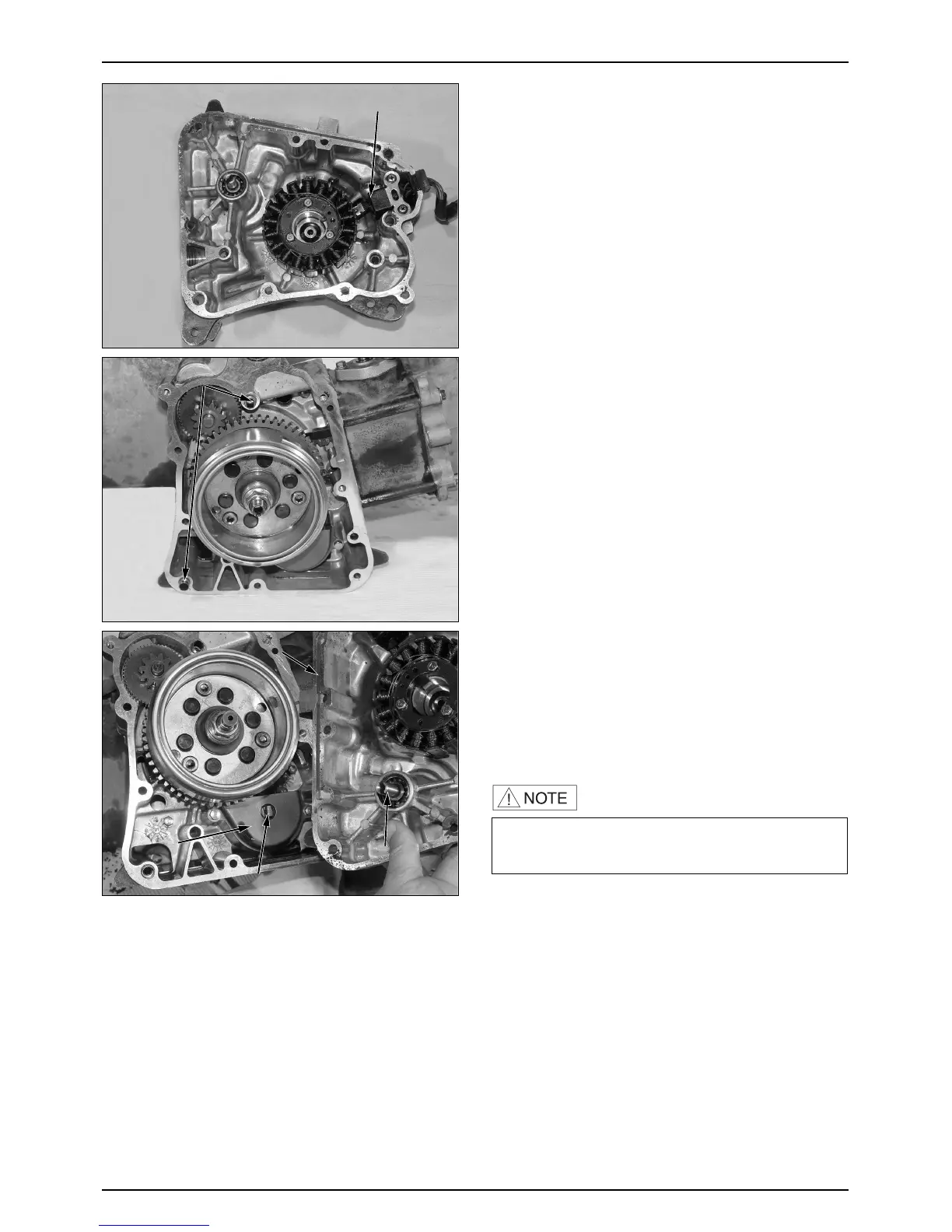

● Install the A.C. generator stator on the RH. crankcase
cover and secure it with the 3 bolts.
● Install the pulse coil on the RH. crankcase cover and
secure it with the 2 scerws.
● Install the wire grommet in the groove in the RH.
crankcase cover securely.
R. CRANKCASE COVER
INSTALLATION
● Install the 2 dowel pins and a new gasket.
● Install the RH. crankcase cover over the crankcase,
aligning the water pump shaft groove with the oil
pump shaft.
● Tighten the 9 RH. crankcase cover bolts.
● Connect the water hoses to the RH. crankcase cover.
● Add the recommended engine oil.
● Fill the cooling system with the specified coolant.
·Be sure to bleed air from the water jacket after filling
the coolant.
